Wiring Diagrams V3

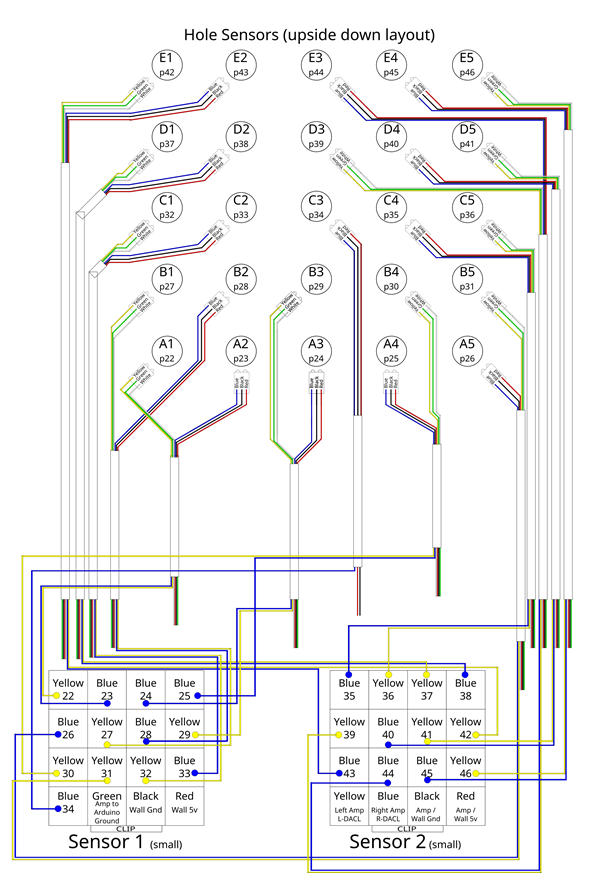

Sketch Layout of Wiring

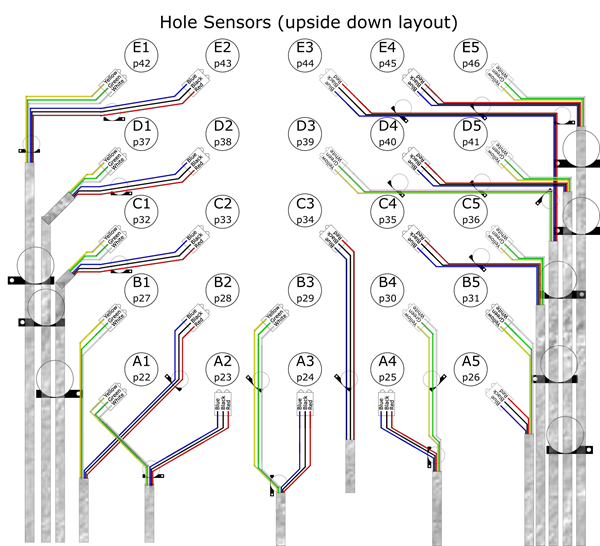

With actual pictures

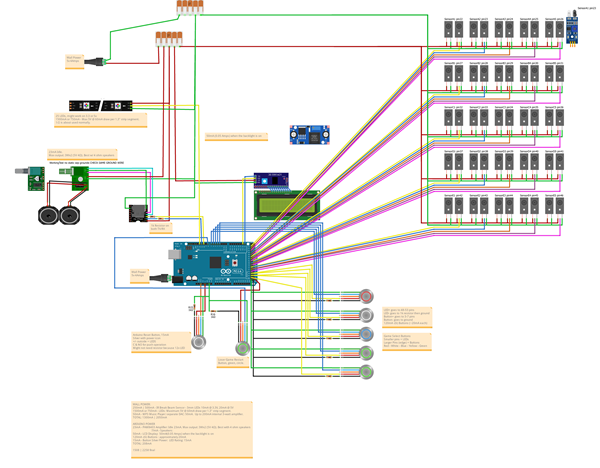

Fritzing Wiring Diagrams
Need to update with PAM8406, BUCK converter, GD3300 Serial MP3 Player, verify connections for LCD and GD3300

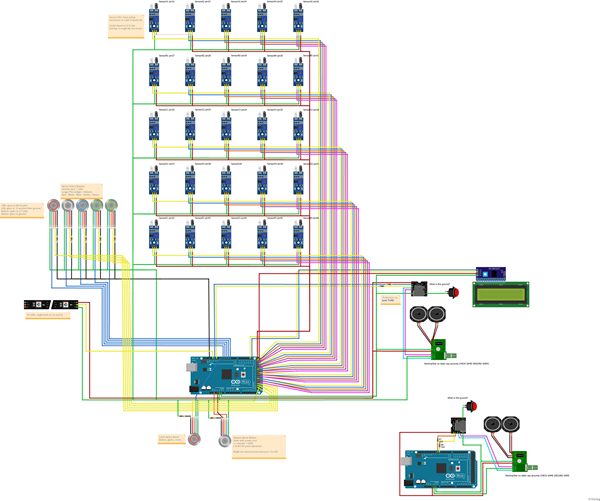

Wiring Diagrams V2
I'm currently updating the diagrams, but here is what I have so far.
Programs/Apps/Files for diagrams
I used 2 programs to create these diagrams,
Fritzing
Inkscape
For Fritzing, you'll need some additional part bins, Arduino, etc etc... will add these later. For now, I'm uploading the files (need updating) for reference.
Fritzing 1.0.6 Install File
Adafruit Library Github
Adafruit Library Download
Fascination Game Sketch File With Breadboard 2025-11-27 (older)
Fascination Game Sketch File Without Breadboard 2025-11-27 (newer and tinking with IR Breakout Beams)

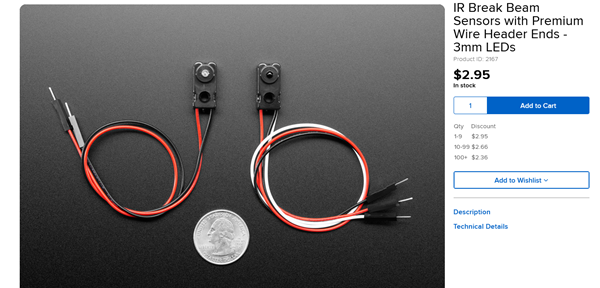

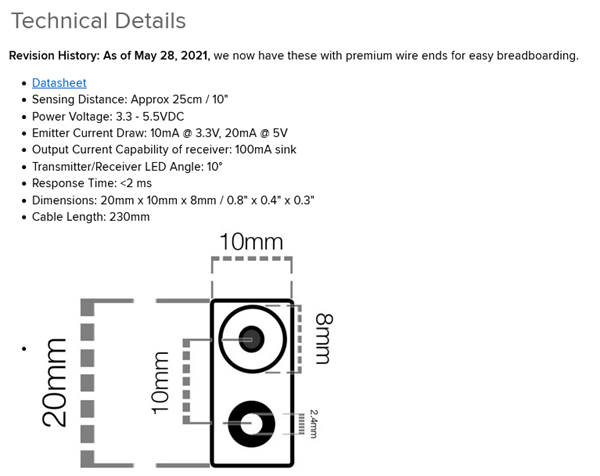

IR Breakbean Sensor RX
IR Breakbean Sensor TX
DF Mini Player (not working yet, might be part of Adafruit library now) https://fritzing.org/projects/dfplayer-mini-part
