Sketches for v2, need to update to v3.

Items such as Table Saw, Power Drill, Kreg hole jig, clamps, markers, etc are not listed.

ID	Quantity	Part Number	Title	Picture	Purchase Site	Category
1	1	Model # 454559 Store SKU # 454559	SANDEPLY 18mm - Sande Plywood ( 3/4 in. Category x 4 ft. x 8 ft.; Actual: 0.709 in. x 48 in. x 96 in.)		HomeDepot Sande 4x8 $65.65 Alternative: Swaner Hardwood 3/4 in. x 4 ft. x 8 ft. Prefinished Birch Plywood $90.48	Frame

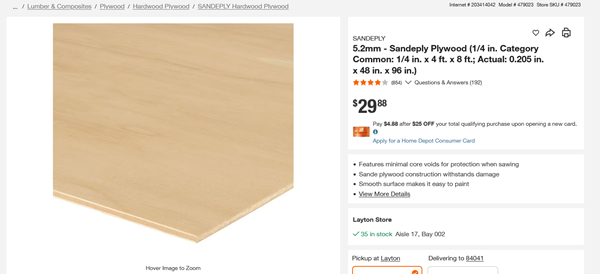

2	1	Model # 479023 Store SKU # 479023	5.2mm - Sandeply Plywood (1/4 in. Category Common: 1/4 in. x 4 ft. x 8 ft.; Actual: 0.205 in. x 48 in. x 96 in.) Brain Box LED holder and maybe back panel door, check 2x4 size also		HomeDepot 1/4" 4x8 $29.88	Brainbox

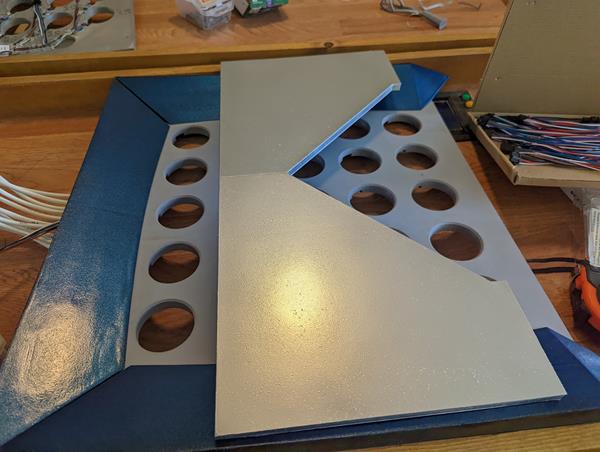

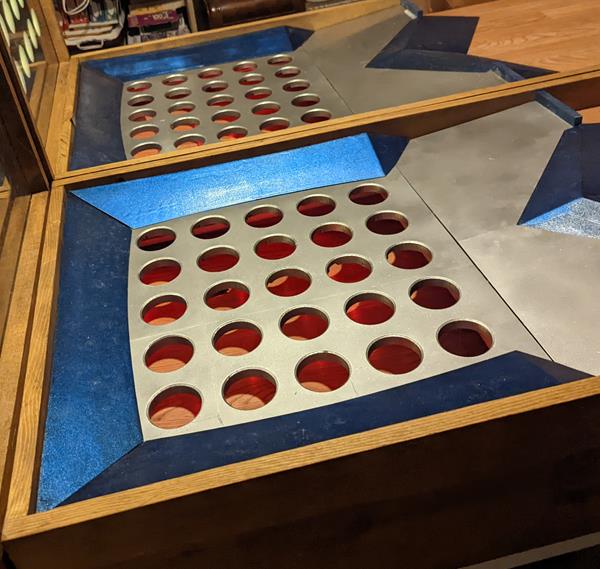

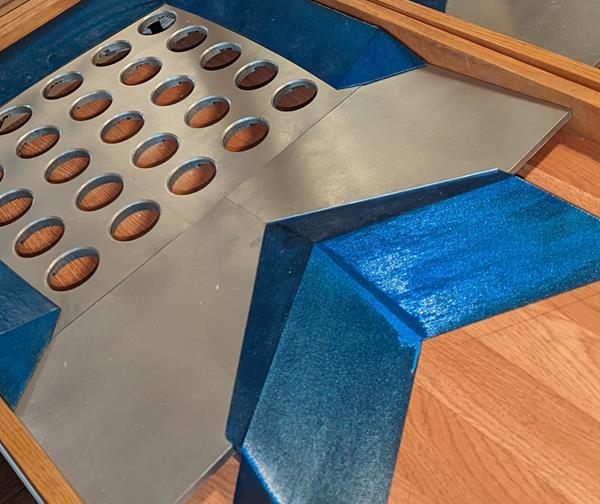

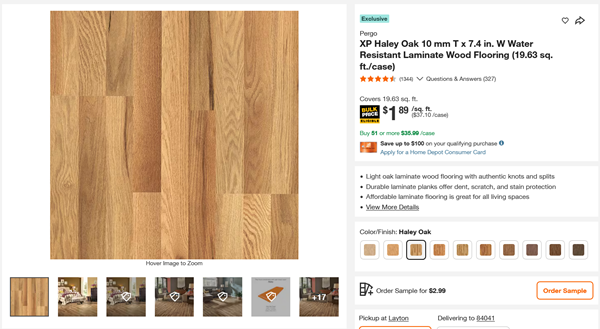

3	9 of 7.5"x50" (3 of 40" top playfield, 3 for downramp, 3 for leftover ball return area if not left over from top length)	Model # 32686 Store SKU # 687452	Discontinued: Gladstone Oak 7 mm T x 7.6 in. W Laminate Wood Flooring (24.2 sqft / case) Important: The top area w/ the electronics was designed to be 7mm thick to go all the way to the holes. I used Click Laminate Flooring for strength and non beveled edges. If the planks are thinner then a spacer can be used w/ the downramp. If they are thicker, it would move the main hump up so a little play is ok. If it is realllly thick then spacers can be added to the main holes, but that will move the hole humps up and close to the top so be careful. Could also try 1/4" plywood (need to test) One side note is Vinyl (non-hybrid) MIGHT Be too flimsy for the top roll field... but vinyl has the thickness and a TON of style/color options. Might do this and see if there's enough supports so it's not flimsy. The Return Downramp on the inside can be as thick and sturdy as you want. I might actually see what are the best strongest options and add that as a product to buy as well if the laminated wood options are no longer available. Lifeproof Vinyl Flooring Lifeproof Hybrid Resiliant 9mm Thick (7mm Core + 2mm attached underlay) Engineered Hardwood (not wide enough, not looking at) Lifeproof Laminate (14mm thick, too tall)		Top Playfield (from looking in store): EBMOSSED Clermont Elm 6.5mm x 8.7x47.6" (7 planks per carton) $60.09 EBMOSSED Pinecrest Oak 6.5mm x 8.7x47.6" (7 planks per carton) $66.12 Downramp (inside): Pergo Haley Oak 10mm 7.4x47" (For downramp, cheap) (8 planks per carton) $35.99 Pergo Anndel Oak 10mm 7.4x47" (For downramp, cheap) (8 planks per carton) $35.99 CHEAP (has beveled edges though) for inside downramp?: Rockwood Oak 7mm x 7.64x50"(Cheapest for inside downramp?, no water protectoin) $0.89 sq ft ($23.92) Orig: HomeDepot Gladstone Oak $0.00 ($0.00)	Playfield

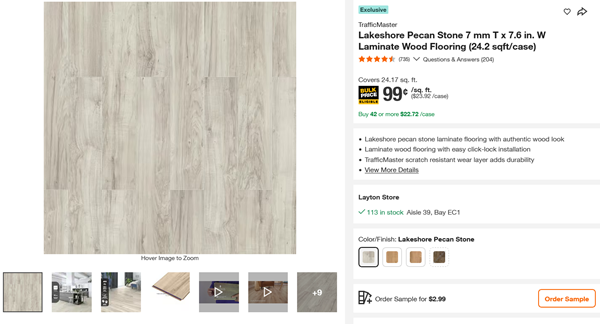

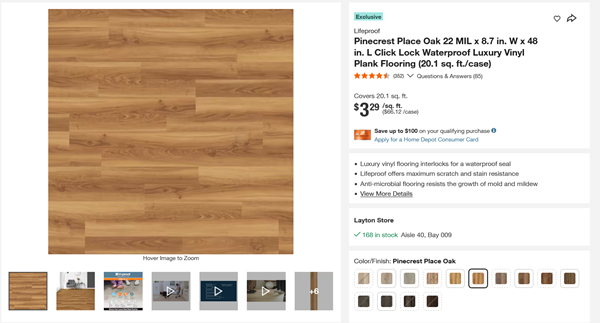

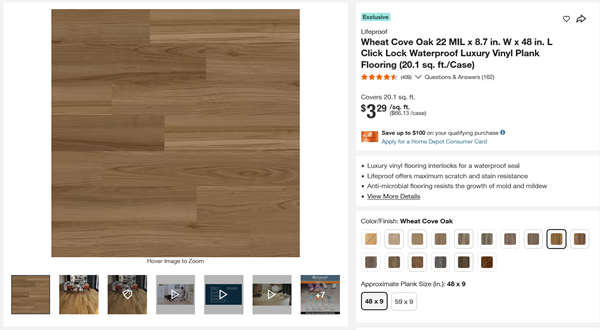

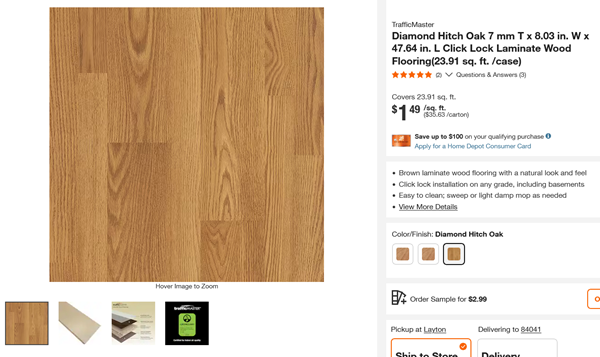

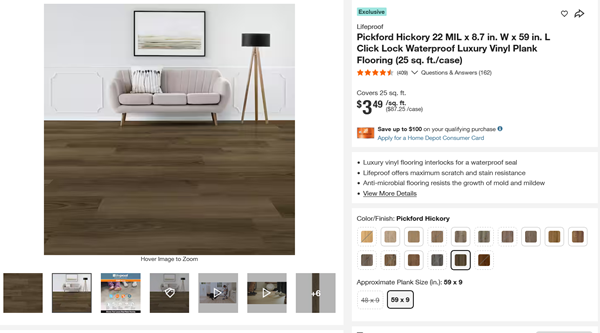

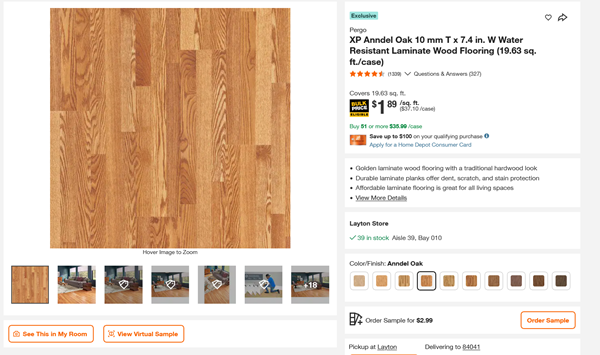

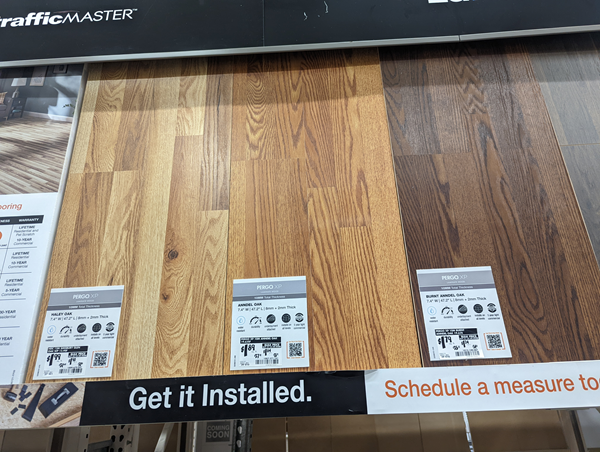

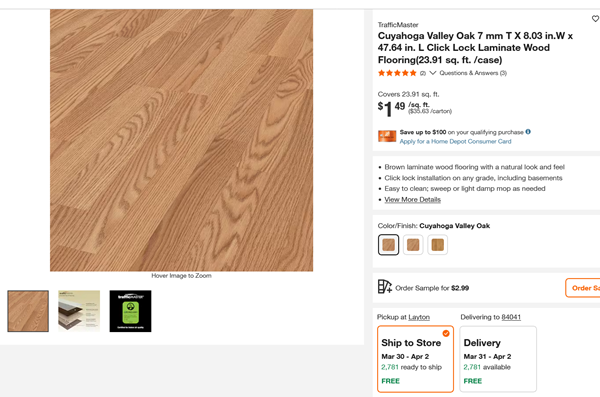

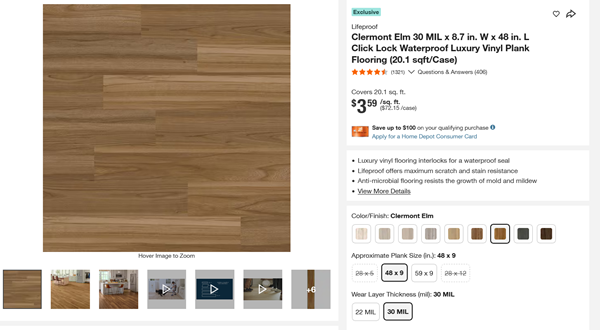

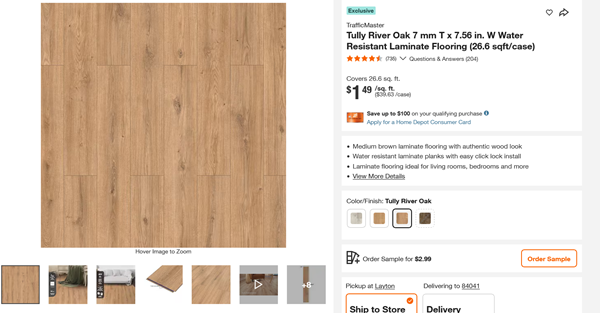

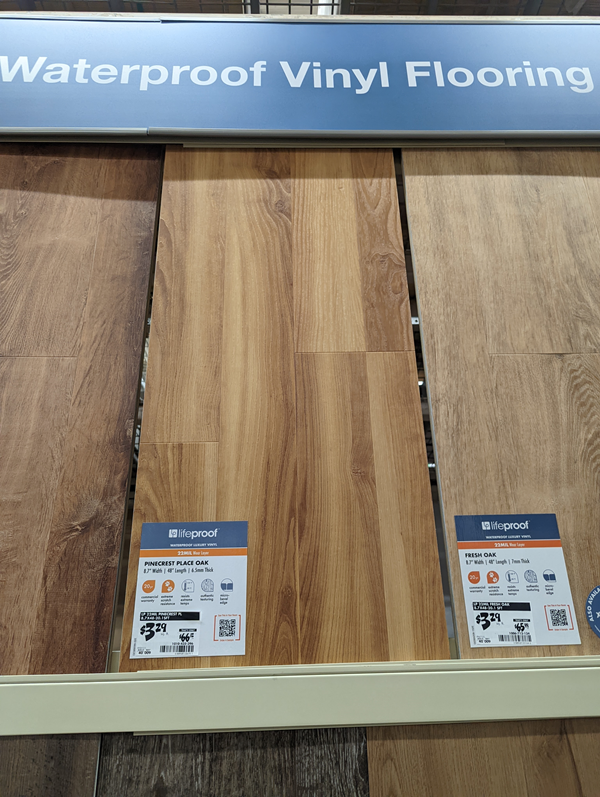

3	9 of 7.5"x50" (3 of 40" top playfield, 3 for downramp, 3 for leftover ball return area)	Model # 32686 Store SKU # 687452	Gladstone Oak 7 mm T x 7.6 in. W Laminate Wood Flooring (24.2 sqft / case) Important: The top area w/ the electronics was designed to be 7mm thick to go all the way to the holes. I used Click Laminate Flooring for strength and non beveled edges. If the planks are thinner then a spacer can be used w/ the downramp. If they are thicker, it would move the main hump up so a little play is ok. If it is realllly thick then spacers can be added to the main holes, but that will move the hole humps up and close to the top so be careful. One side note is Vinyl (non-hybrid) MIGHT Be too flimsy for the top roll field... but vinyl has the thickness and a TON of style/color options. Might do this and see if there's enough supports so it's not flimsy. The Return Downramp on the inside can be as thick and sturdy as you want. I might actually see what are the best strongest options and add that as a product to buy as well if the laminated wood options are no longer available. Lifeproof Vinyl Flooring Lifeproof Hybrid Resiliant 9mm Thick (7mm Core + 2mm attached underlay) Engineered Hardwood (not wide enough, not looking at) Lifeproof Laminate (14mm thick, too tall) Check Playfield in-stock for thickness, top texture, etc Lifeproof vinyl Butler Hickory A40 B09 Lifeproof Pinecrest Place Oak A40 B09 Lifeproof Vinyl Fairview Oak (too light?) Lifeproof Vinyl Waukee Mill Maple (too light?) Check Downramp options that are in stock Pergo Haley Oak Aisle 39, Bay 010 Pergo Anndel Oak		Top Playfield: EBMOSSED Wheat Cove Oak 6.5mm x 8.7x48" (7 planks per carton) $66.13 EBMOSSED Pickford Hickory 7mm x 8.7x59" (7 planks per carton) $87.25 EBMOSSED Hudspeth Maple 7mm x 8.7x48" (7 planks per carton) $72.15 EBMOSSED Butler Hickory 7mm x 8.7x48" (7 planks per carton) $72.15 EBMOSSED Clermont Elm 7mm x 8.7x48" (7 planks per carton) $72.15 Downramp (inside): Pergo Haley Oak 10mm 7.4x47" (For downramp, cheap) (8 planks per carton) $35.99 Pergo Anndel Oak 10mm 7.4x47" (For downramp, cheap) (8 planks per carton) $35.99 Really Like but limited (for top): Kellum Valley Oak Gunstock Brown 7mm x 8x47" (Limited Edition, Might be discontinued soon) (9 or more) $320 CHEAP (has beveled edges though) for inside downramp?: Rockwood Oak 7mm x 7.64x50"(Cheapest for inside downramp?, no water protectoin) $0.89 sq ft ($23.92) Diamond Hitch Oak 7mm (only 47" long) (9 or more) $320 Cuyahoga Valley Oak 7 mm (8.03x47") (9 or more) $320 Don't use has bevels Tulley River Oak 7mm $1.49 sq ft ($39.63) Lakeshore Pecan Oak 7mm $0.99 sq ft ($23.92) Orig: HomeDepot Gladstone Oak $0.00 ($0.00)	Playfield

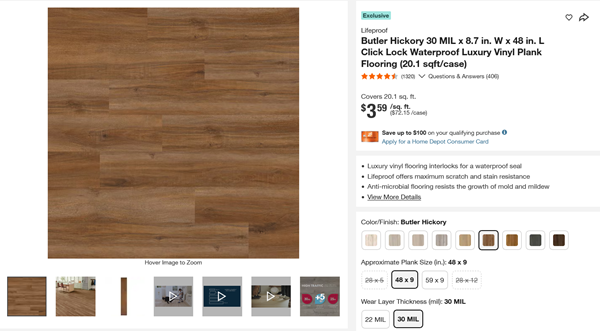

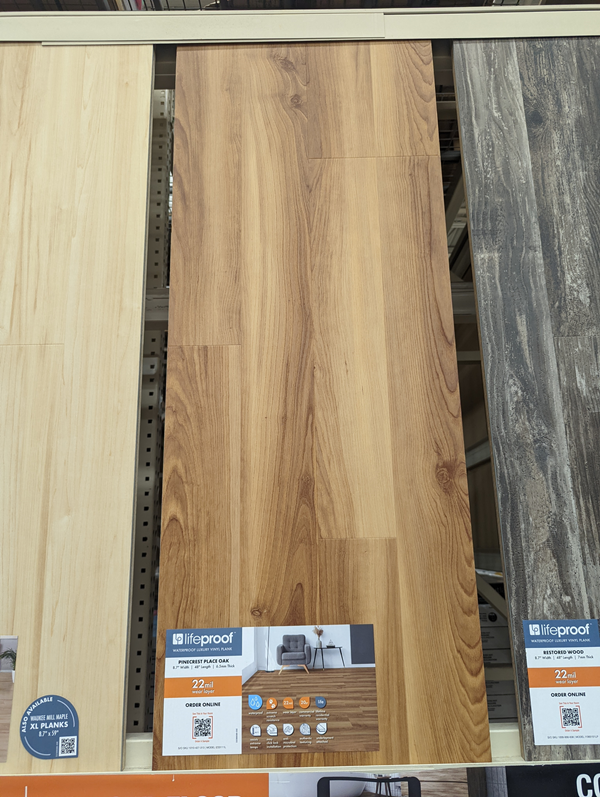

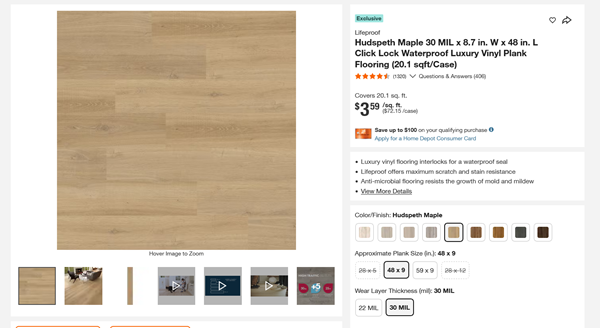

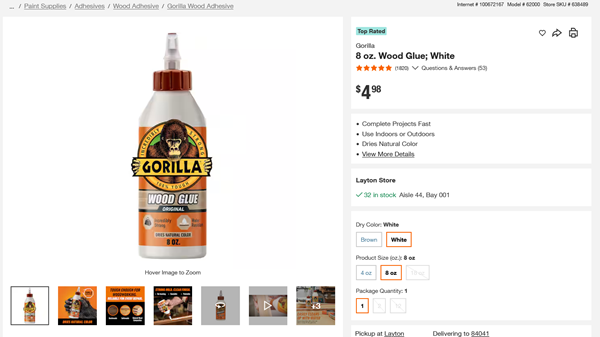

4	1	Model # 62000 Store SKU # 638489	Gorilla Wood Glue (Optional) Use glue to glue flooring planks together. If using glue for box sides, may as well use PL MAX		HomeDepot Gorilla Wood Glue ($4.98) Alternatives: PL Max Adhesive $12.98 Titebond III 16 oz. Ultimate Wood Glue $7.48	Frame

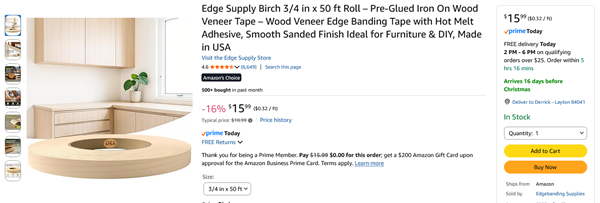

5	30 feet?	Amazon: B07P8WXM7P	Edge Supply Birch 3/4 in x 50 ft Roll - Pre-Glued Iron On Wood Veneer Tape (Need to measure length)		Amazon 3/4" Birch 50 ft $15.99 Also has 250 feet $39.99 Alternative GSCIT Club Birch Edge Banding, 3/4 inch x 250ft $31.99	Frame

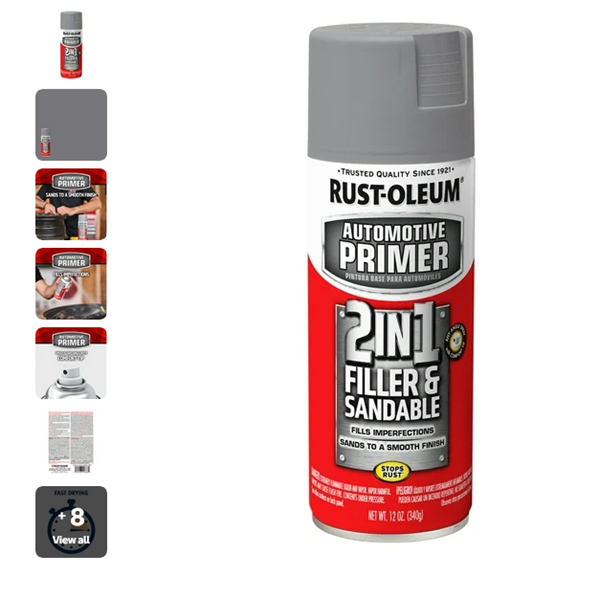

6	1	Primer	Rust-Oleum 2-in-1 sandable filler primer		Amazon $7.97 Walmart Aisle I22 $7.97 Lowes $7.98 (website shows $13) HomeDepot (doesn't say 2 in 1 $8.98	Finish

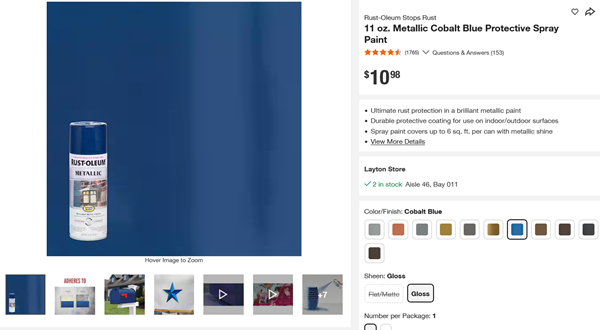

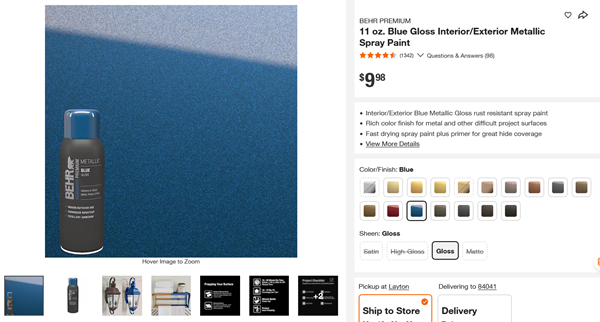

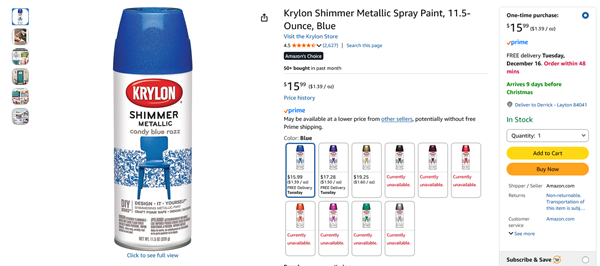

6	1	Candy Blue Razz... or a different matallic blue.	Krylon Blue Shimmer Metallic Spray Paint might become discontinued... Try different blues, I found a Home Depot Behr Blue Metallic to try, Rustoleum Cobalt Blue might work also.		Amazon Blue Shimmer Krylon $15.99 Behr Blue Metallic $9.98 Rustoleum Cobalt Blue $10.98	Finish

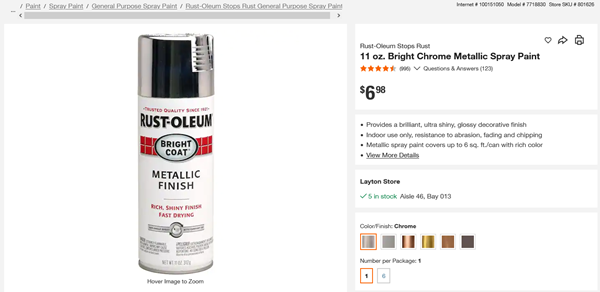

7	1	Model # 7718830 Store SKU # 801626	Bright Chrome Metallic Spray Paint		HomeDepot Chrome $6.98	Finish

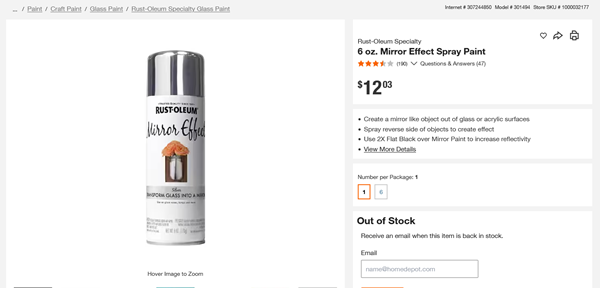

8	1	Model # 301494 Store SKU # 1000032177	Rust-Oleum Specialty 6 oz. Mirror Effect Spray Paint check other places too		HomeDepot Mirror Spray $12.03 Amazon Link $6.99	Finish

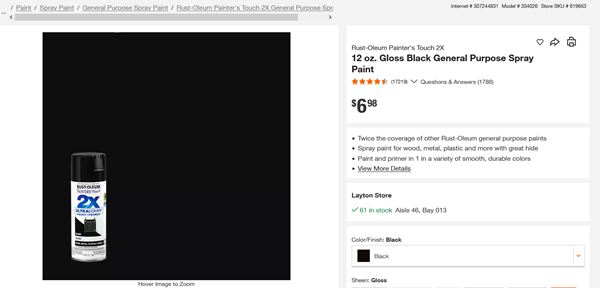

9	1	Model # 334026 Store SKU # 619653	Gloss Black General Purpose Spray Paint. Use on plastic parts that will have a metallic coloring, aka Chrome and Blue.		HomeDepot Gloss Black $6.98	Finish

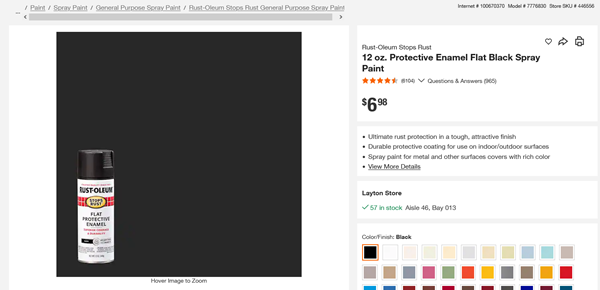

10	1	Model # 7776830 Store SKU # 446556	12 oz. Protective Enamel Flat Black Spray Paint For back covering of Mirror Spray.		HomeDepot Rust-Oleum $6.98	Brainbox

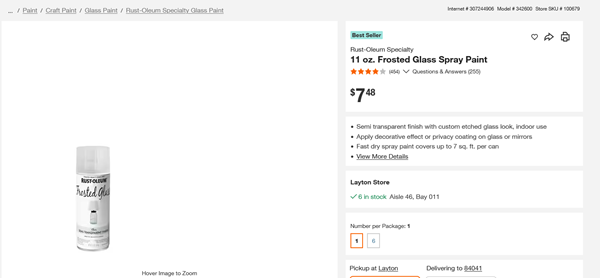

11	1	Model # 342600 Store SKU # 100679	Frosted Spray Paint check other places for price		HomeDepot Frost Glass $7.48 Amazon $6.88	Brainbox
12	1	Model # 7701830 Store SKU # 801397	Protective Enamel Gloss Crystal Clear Spray Paint		HomeDepot Clear Gloss Enamel $6.98	Brainbox

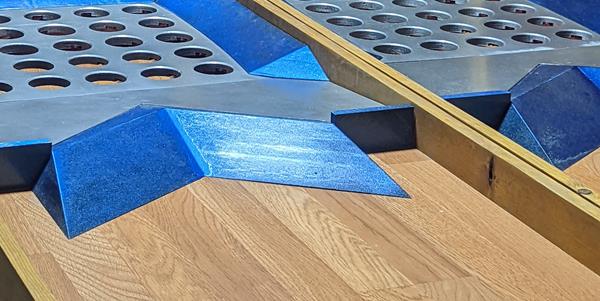

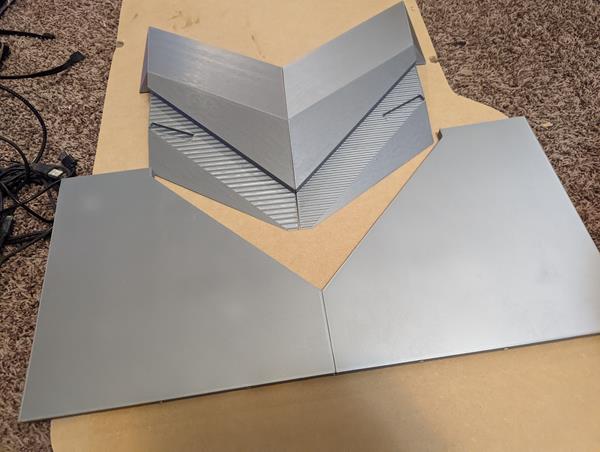

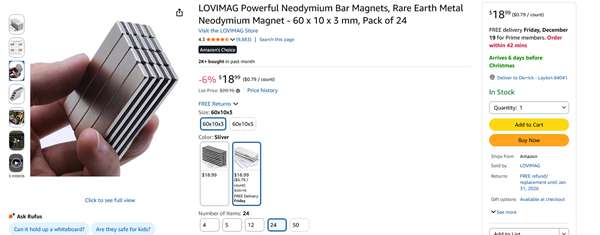

13	16 Total (4) Left Hump (4) Right Hump (4) Top Hump (4) Main Hump/Downramp	B07DFZH4WT	Neodymium Bar Magnets, Rare Earth Metal Neodymium Magnet - 60 x 10 x 3 mm Need 2 per slot, use epoxy glue		Amazon 60x10x3 (24) $18.99	Playfield

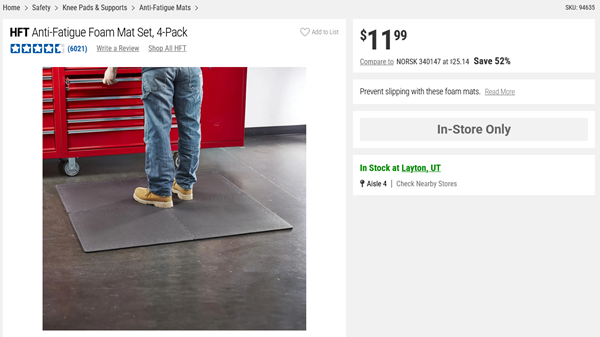

14	1 set of 4 (Need 2 mats)	94635	Anti-Fatigue Foam Mat Set, 4-Pack For Brain Box LEDs 1/2" thick, need 2 pieces about 23"x23"		HarborFreight Foam Mat Set of 4 $11.99	Brainbox

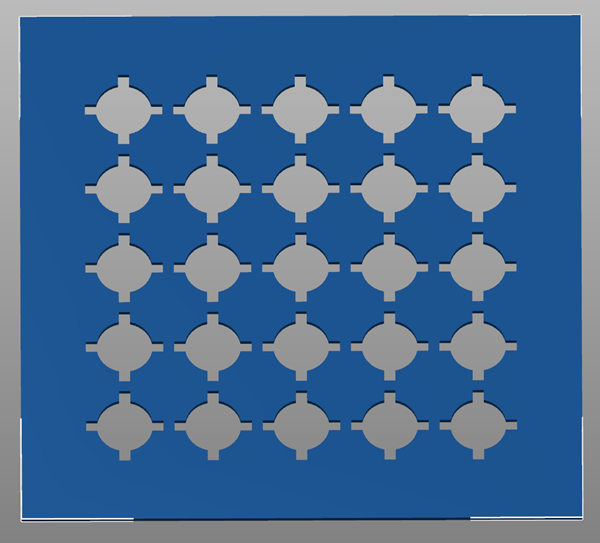

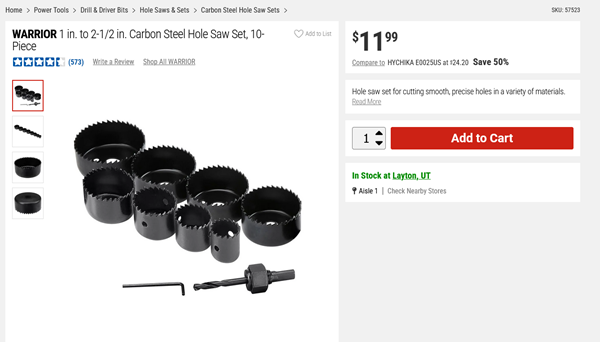

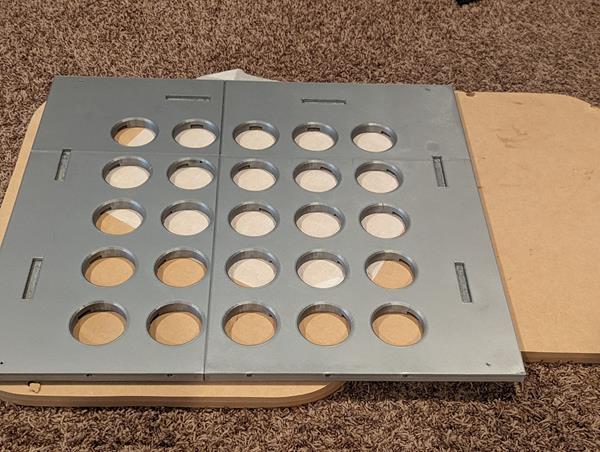

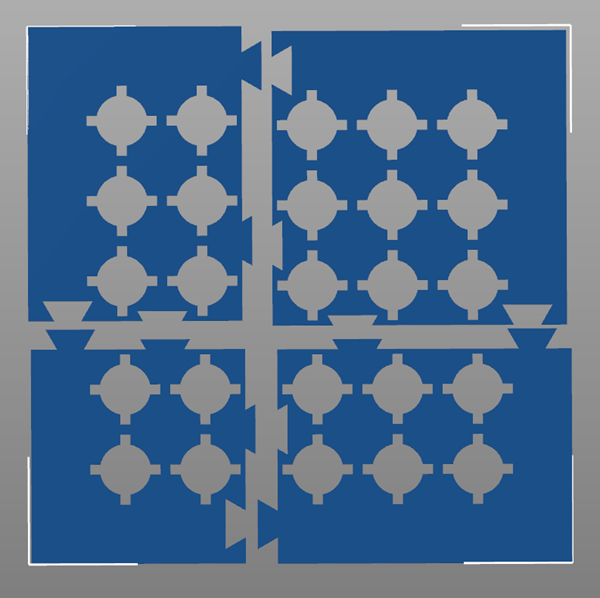

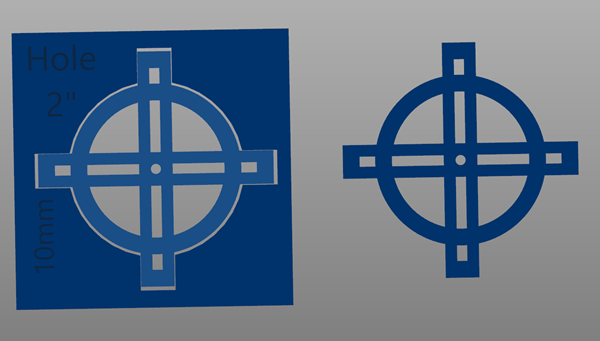

15	1	57523	2" (at least) hole cutter for foam More teeth the better, going through 1/2" foam. Maybe cut larger than 2" for mirror hole size overlap.		Harbor Freight Set $11.99	Brainbox

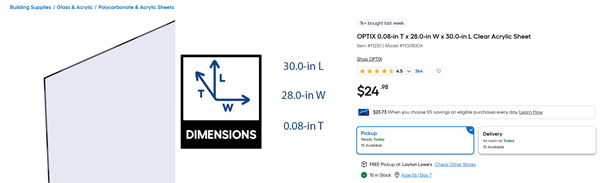

16	1	Item #11230 Model #11G0830A	OPTIX 0.08-in T x 28.0-in W x 30.0-in L Clear Acrylic Sheet Lowes cut to 23x23? Glass breaks, used Cast Acrylic instead.		Lowes Acrylic 28x30 $24.98 T&T Plastic Land Cast Acrylic $21.31 Tap Plastics Cast Acrylic $27.18 Amazon 23"x23", 1/8 (3mm) to check out and compare if same thing $32.54 Alternate Version 2 (breakable): HomeDepot Clear Glass 24"x 30" $16.98	Brainbox

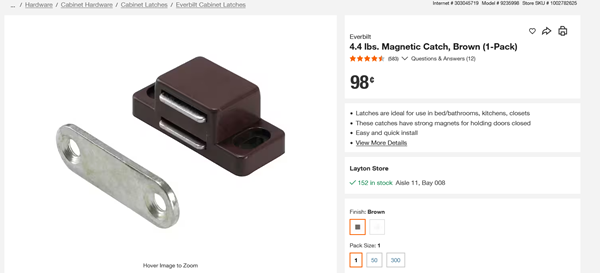

17	4 (maybe 2 in centers)	Model # 9235998 Store SKU # 1002782625	4.4 lbs. Magnetic Catch, Brown, Cabinet Magnets, brainbox		HomeDepot Cabinet Magnet $0.98 ($1.96)	Brainbox

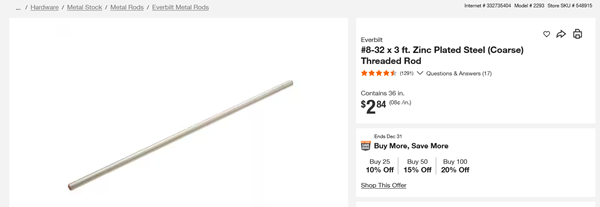

18	3 ft?	Model # 2293 Store SKU # 548915	#8-32 x 3 ft. Zinc Plated Steel (Coarse) Threaded Rod for 3D print insert/connectors, 4.4? mm hole The #10-24 rod needs at least a 4.5mm hole.		#8-32, HomeDepot Threaded Rod $2.84 Or did I get this one from lowes? $1.48	Playfield

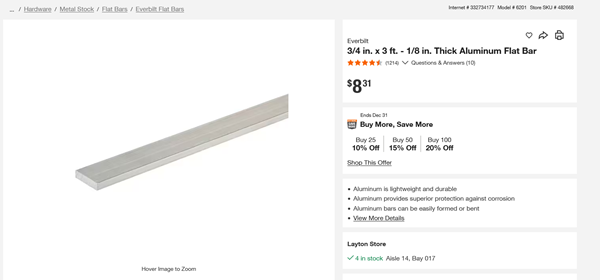

19	Up to 22"	Model # 6201 Store SKU # 482668	3/4 in. x 3 ft. - 1/8 in. Thick Aluminum Flat Bar Aluminum bar, connecting brain to main		HomeDepot Aluminum Bar $8.31	Frame
20	3	Model # 800746 Store SKU # 661783	5/16 in.-18 x 2-1/2 in. Zinc Plated Hex Bolt bolts for alum bar, add as many as you want		HomeDepot $0.54 ($1.62)	Frame

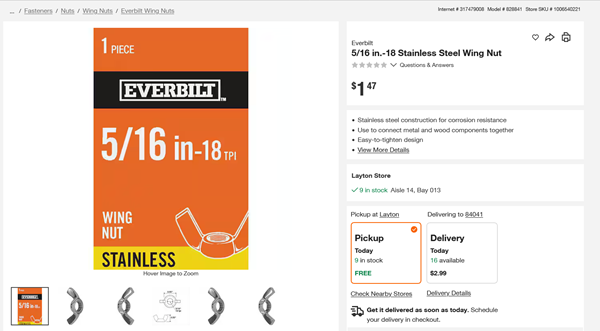

21	3	Model # 828841 Store SKU # 1006540221	5/16 in.-18 Stainless Steel Wing Nut, for attaching brain box to play box.		HomeDepot Wing nut $1.47 ($4.41)	Frame

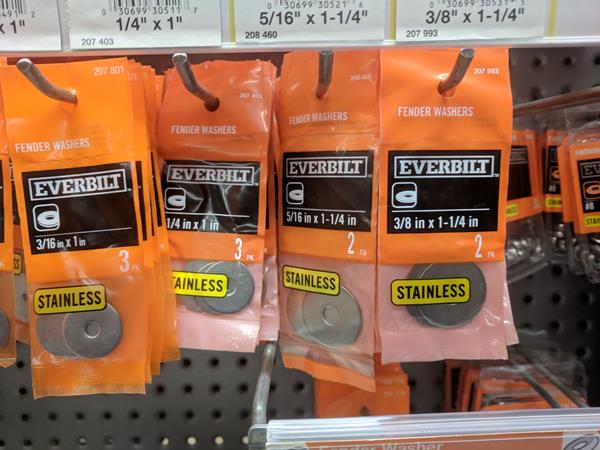

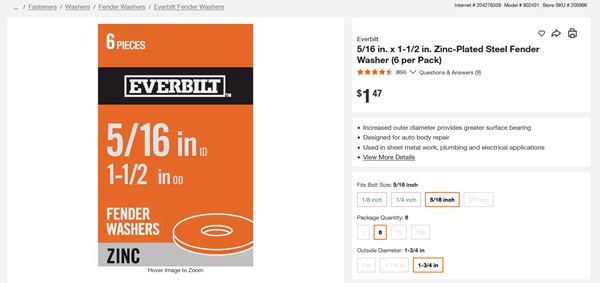

22	6	Model # 802431 Store SKU # 205996	5/16 in. x 1-1/2 in. Zinc-Plated Steel Fender Washer (6 per Pack)		HomeDepot Washer 6 pack $1.47	Frame

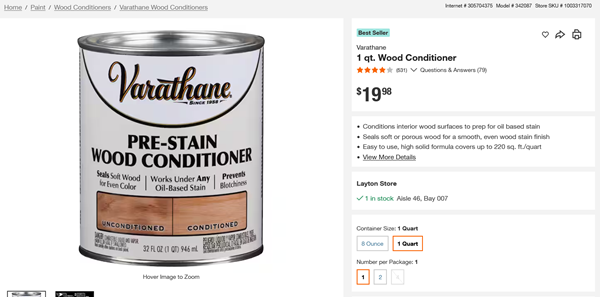

23	1	Model # 342087 Store SKU # 1003317070	Stain, preconditioner		HomeDepot Preconditioner $19.98	Finish
24	1	Model # 339702 Store SKU # 1003308611	1 qt. Golden Oak Classic Wood Interior Stain Stain, pick color you like		HomeDepot Golden Oak Stain $13.98	Finish

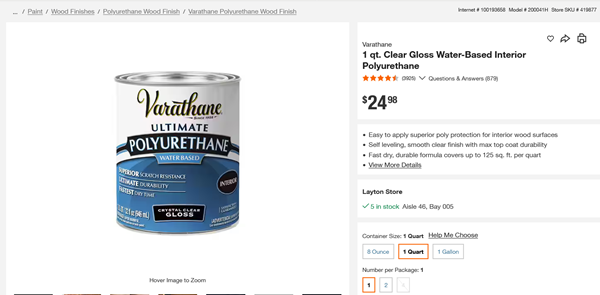

25	1	Model # 200041H Store SKU # 419877	Clear Gloss Water-Based Interior Polyurethane		HomeDepot Gloss Clear Coat $24.98	Finish

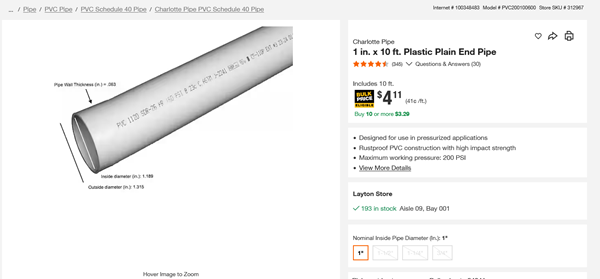

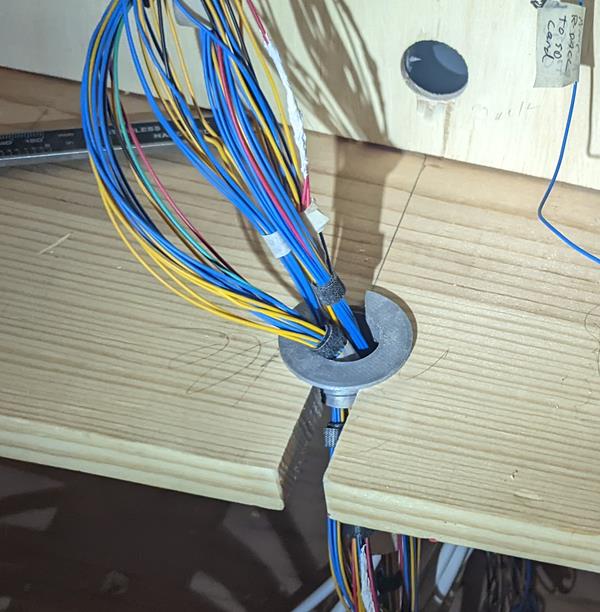

26	x feet	Model # PVC200100600 Store SKU # 312967	1 in. x 10 ft. Plastic Plain End Pipe for wire routing		HomeDepot 1" pipe x 10 ft $4.11	Frame
26	60"? max per side, maybe need 2 sides, still designing.	Cord Hider	Thinking hard shell (not silicone) that has a hinged opening. Can also screw in for more support. Small (not hinged) Medium: 0.7" x 0.35" (not hinged) Large: 0.55" x 1.18" (hinged) XLarge: 0.71" x 1.38" (hinged)		Cord Hider Hinged L 68"s $15.99 157" hinged $26.99 Silicone 10ft $20.99 Silicone 78" $12.99	Frame

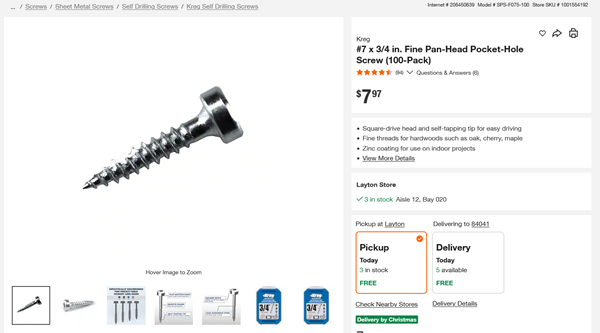

27	1 (pack 100)	Model # SPS-F075-100 Store SKU # 1001554192	3/4" Kreg Pocket Screws (non washer head, might stick out, your choice)		HomeDepot 3/4" Kreg Pocket Screws $7.97	Frame

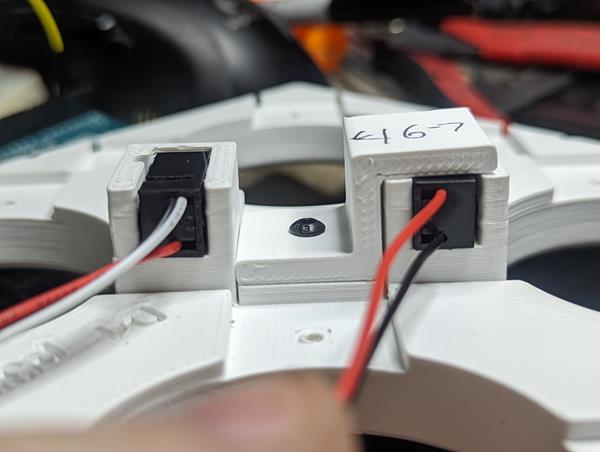

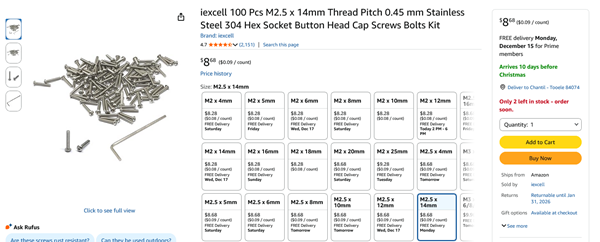

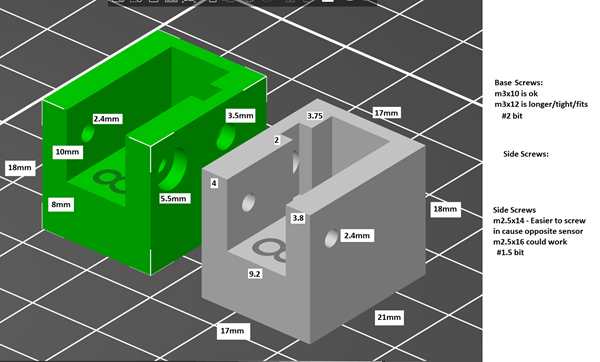

28	50 for sensor side mount case	m2.5x14 button head	Screws m2.5x14 for Sensor Case Side Mount to Breakbeam m2.5x16 could work but harder to screw in w/ opposite sensor.		Amazon iexcell m2.5x14 100 pcs silver button head $8.68 Amazon iexcell m2.5x16 100 pcs silver button head $8.68	Playfield
29	50 for sensor mount to holes xx for other mounting after design.	M3x8 (M3x10 tall sensor) button head	Screws m3x8 (Could be M3x10 if taller sensors used) for Mounting Sensor Case to Hole Board. M3x8 could also be used for attaching items to top surface.		Amazon iexcell m3x10 100 pcs silver button head $8.76 per 100 box Black m3x10$8.86 per 100 box Amazon iexcell m3x12 100 pcs silver button head $8.76 per 100 box	Playfield

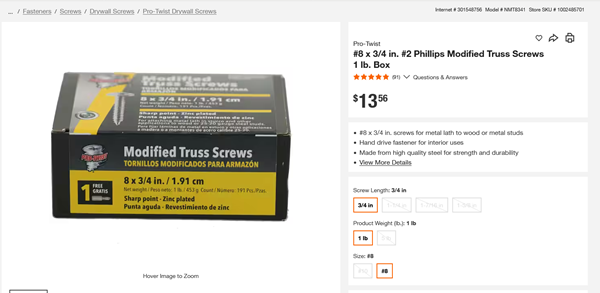

30	1 box	Model # NMT8341 Store SKU # 1002485701	#8 x 3/4" Truss Screws for PVC Pipe, holding ramps/pieces down.		HomeDepot Pro Twist Truss Screw $13.56	Frame

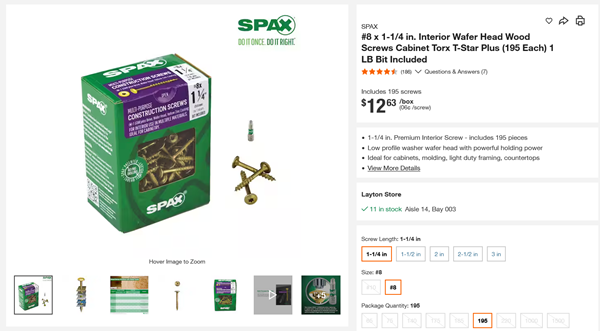

31	1 box	Model # 4281020400324 Store SKU # 1006213404	#8 x 1 - 1/4" Spax Screws for Side Supports and Bottom Ramp Drop Zone Board		HomeDepot Spax 1 1/4" $12.63	Frame
32	x feet	B07ZRWFDX8	1 inches Width (25mm) 5 Yards Sew on Hook and Loop Strips		Amazon Sew Velcro $6.50	Frame

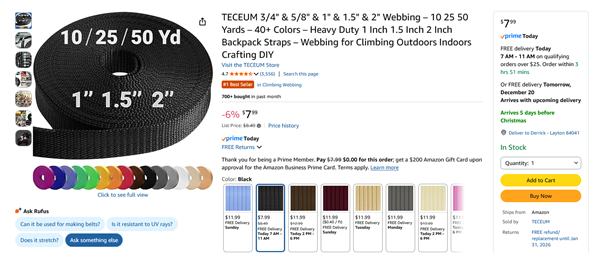

33	x feet	B09B6W122Y	1 inch Nylon Webbing to sew velcro onto		Amazon Nylon Webbing $7.99	Frame

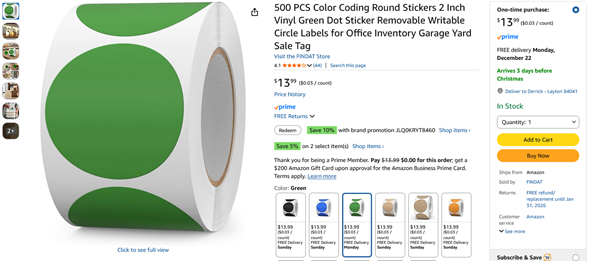

34	25	B0F2FDGY3Z	2" vinyl Stickers		Amazon 2" Vinyl Stickers $13.99	Brainbox
35	6 (12 jumbo container)	B00MLUJ95Y	Racquetballs		Amazon 6 balls (2 cans) $15.94 Racquetballs, Pack of 12 $24.49	Playfield
36	2	Hinges	Look for something like... frameless inset soft close. See if hinge size fits in box.		Blum w/cover plates 2 pcs $16.13 Luokim 2 pcs $9.69	Brainbox
37	2? 4?	Secure system for covering	Thinking inset screws? Cover for the top play field for dust/transportation. Use another foam piece for covering glass. User leftover 1/4" plywood.		Threaded Inserts, 30 pcs $8.99	Cover

Hole cutter for speakers
Look at other pieces, like buttons, what hole cutter size?

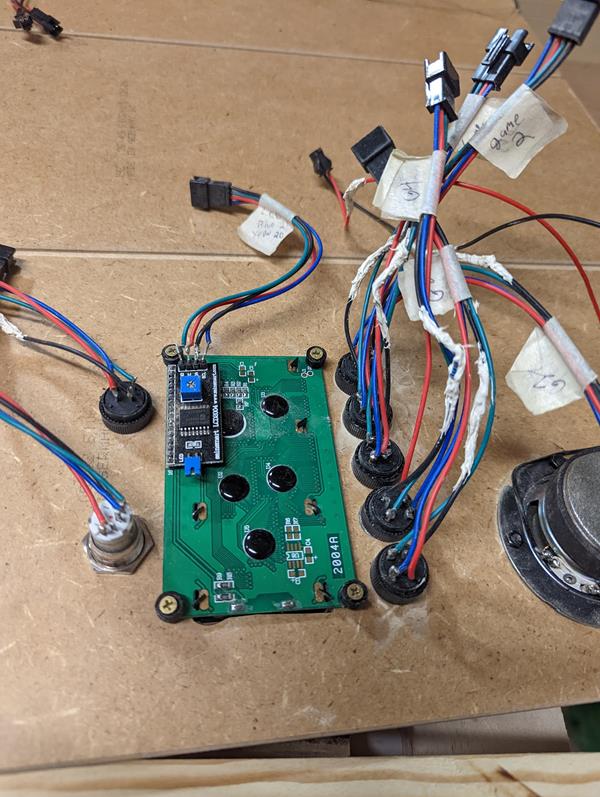

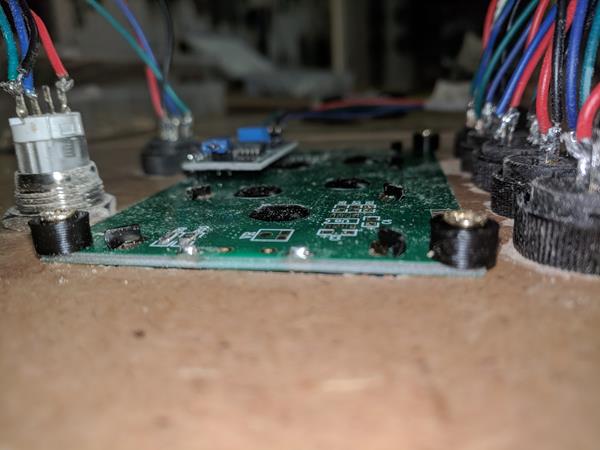

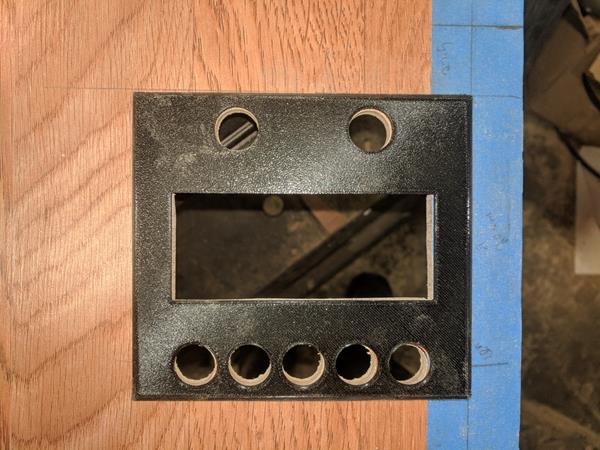

Screws for attaching lcd plate? is that m2.5 * 8?

Power distribution module

ID	Quantity	Part Number	Title	Picture	Purchase Site

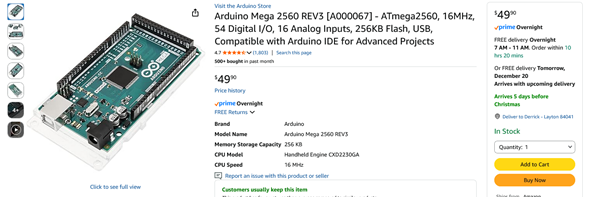

1	1	Arduino Mega 2560 REV3	Arduino Mega 2560 REV3 [A000067] - ATmega2560, 16MHz, 54 Digital I/O, 16 Analog Inputs, 256KB Flash, USB, Compatible with Arduino IDE for Advanced Projects. Looked into Newer boards but they run at 3v or it's not worth paying double the price.		Amazon $39.00 (sale) DF Robot $48.00 Sparkfun $48.40

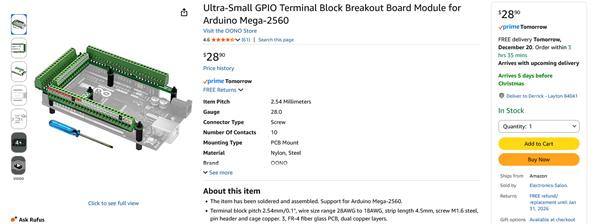

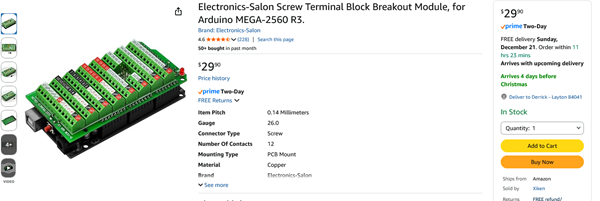

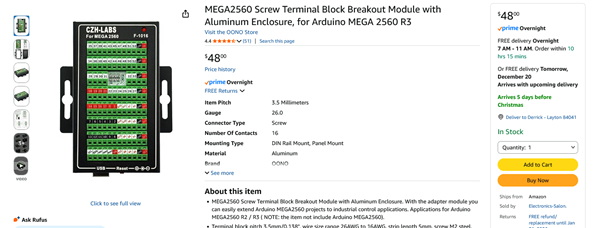

2	1	IWVV7ZDKCT77U	Arduino screw Terminal Block connector (with or without case options) Maybe get Ultra Small rail instead!!!		Amazon Ultra Small Can unscrew without others in the way $28.90 Amazon Screw Block, no case $29.00 Alternate: Amazon Screw Block With Case $48.00

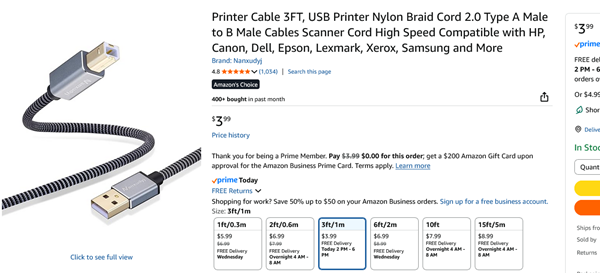

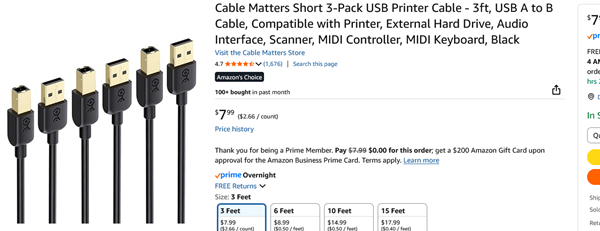

3	1	xxxPartNumber	USB-B for Arduino		3 ft USB-B Cable, 1pc $3.99 3ft, 3 pack $7.99

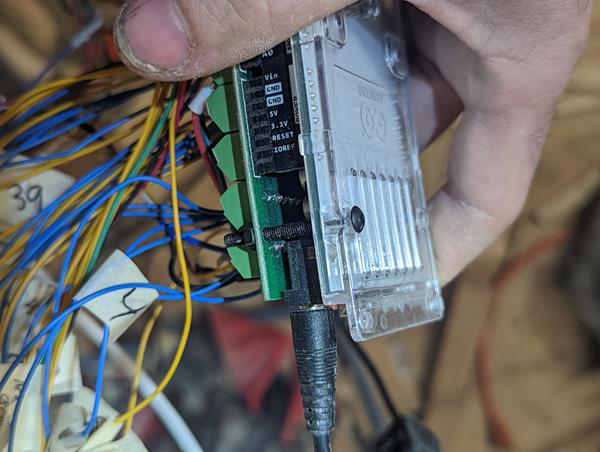

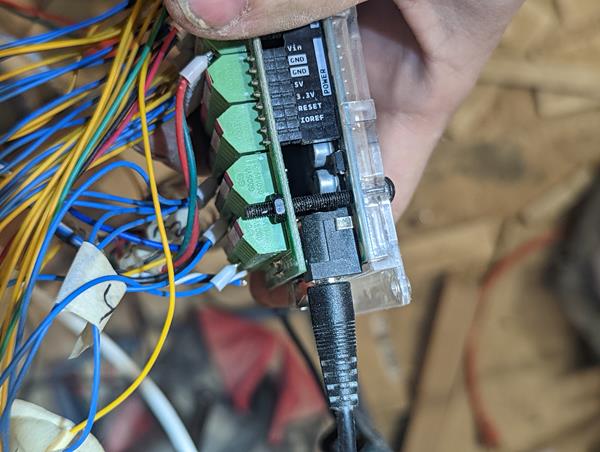

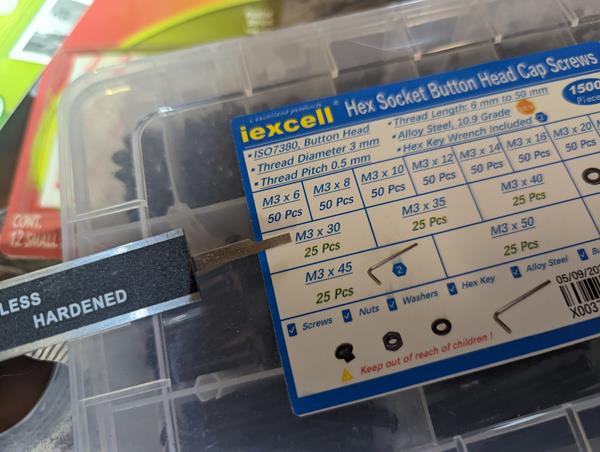

3	xxxQuantity	xxxPartNumber	M3x30 screws for holding Terminal Block to Plastic Base. Check on this w/ version 3 to see if needed.		xxx $0.00 ($0.00) Alternate: xxx $0.00

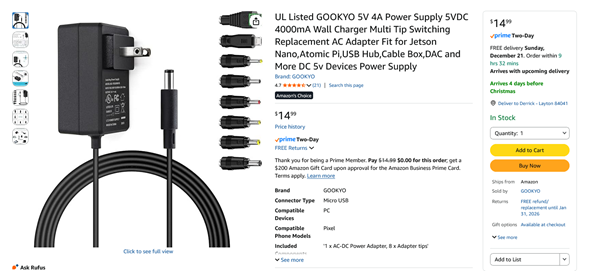

4	1	1466	USE 9V with new system, currently testing. 2Amps probably good, 3 amps just in case? 5v 4Amp power supply, 5.5x2.1 for Arduino UL Listed Amazon version has LED adapter. Also looking into 9v to split into Arduino and something to drop the volts to 5 to go to devices because the LCD screen doesn't like 5v barrel to arduino. Could also power LCD directly to power supply like other hardware. Warning: Drawing more than 500mA through the USB port will cause the fuse to trip and cut power until it cools down. If your project requires more than 500mA total, you should use an external 7-12V power supply connected to the DC barrel jack, notes the Arduino Documentation and the Arduino Forum		9v, UL Listed 9V 2A Anlink 6ft Sideways plugin (with or without tips) $9.99 9V 3A YOCXAOG (adv for arduino) 5ft $13.99 9V 2A Oxzeewee 6ft Sideways plugin (with or without tips) $9.99 9v 1.5A 6.6ft (adv for arduino) $9.80 9V 3A PERFEIDY 6ft $19.68 9V 2A Gonine, amazon choice 6ft $12.99 9V 5A NOT UL LISTED $14.89 9V 5A NOT UL LISTED $18.89 Adafruit 5v 4amp UL $14.95 Alternate: Amazon GOOKYO 5V 4A $14.99 UL Listed 9V 1amp $8.99

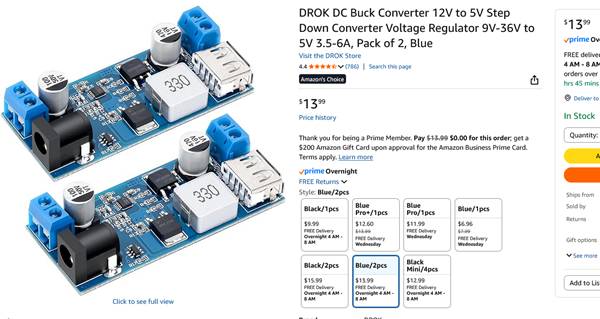

xxx	1	Buck Converter	DROK Buck Converter, can accept 9v input from wires/barrel and output 5v/6amp Best to use 9v 4amp input main power then drop for electronics, safe for accidental plug-ins of wrong cords.		DROK Buck Step Down 2pcs $13.99 Alternates: Utronics 2pcs $14.99 MTDELE 2pcs $13.79 JZK 1pc $5.76

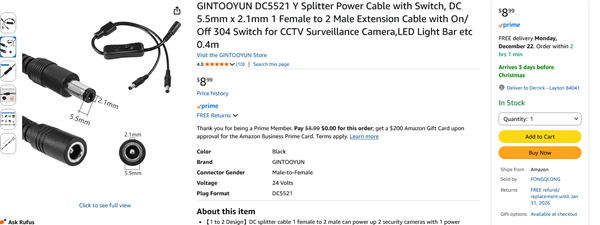

xxx	1	GINTOOYUN DC5521	Barrel Y Splitter Power Cable with Switch, DC 5.5mm x 2.1mm 1 Female to 2 Male Extension Cable with On/Off 304 Switch		Amazon Y Splitter $8.99 Alternate: Amazon 2 pack $12.59
xxx	1	Barrel To USB-B Connector	If wanting to use a 5v power supply to plug directly into the USB input on the Arduino Mega, use the following connectors. USB 2.0 A female to DC 5.5x2.1mm female Adapter Cable 5 Volt DC Barrel Power		Adapter: Single no cord, 2Pcs $7.99 Corded, 1Pcs $7.59

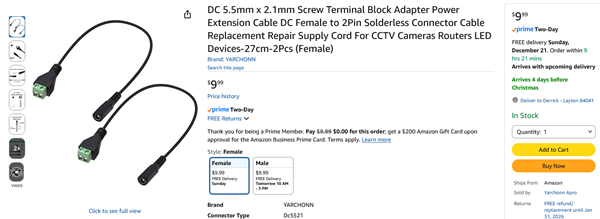

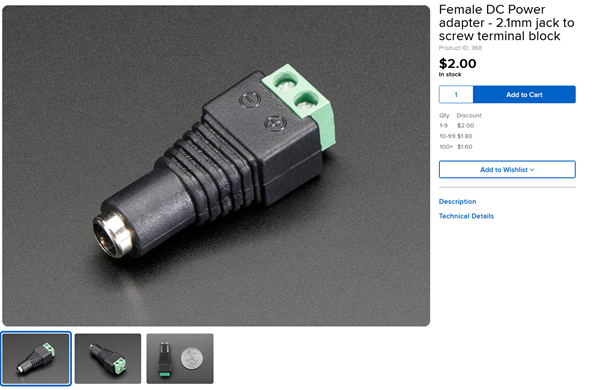

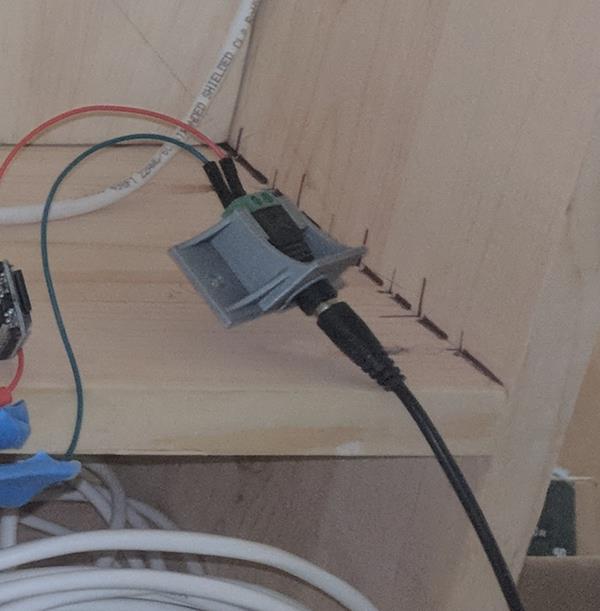

xxx	1	368	Female DC Power adapter - 2.1mm jack to screw terminal block **Other power supply from Amazon comes with this**		Adafruit Connector $2.00 Alternate: Amazon with longer cables $9.99

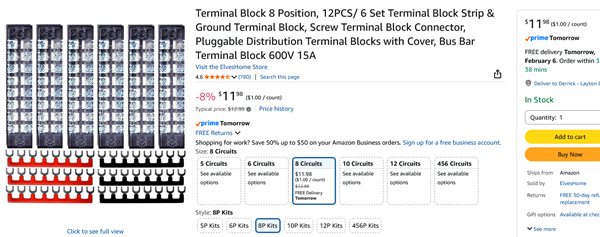

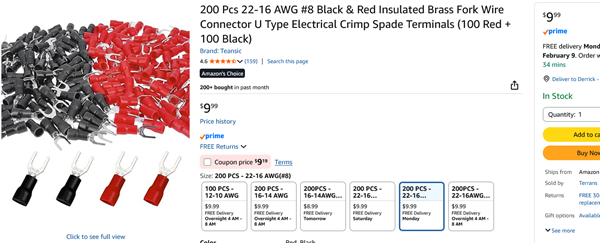

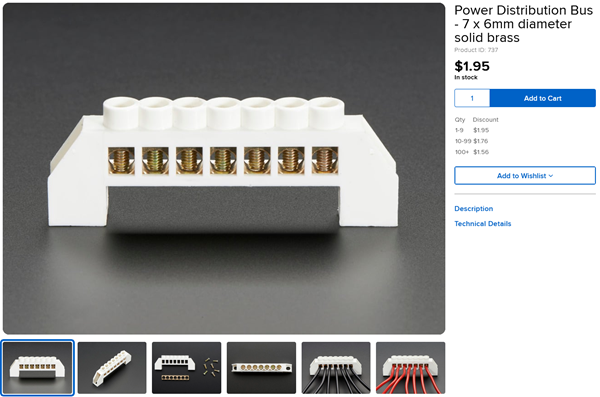

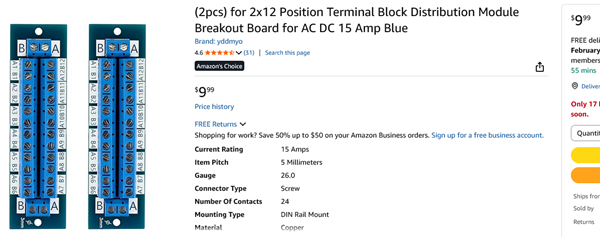

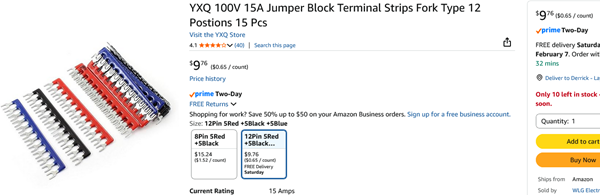

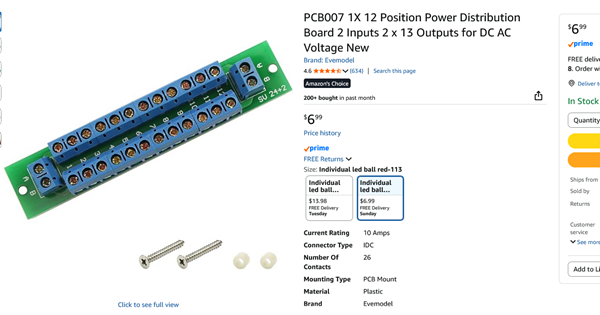

xxx	2 or 4?	Terminal Blocks aka Bus Bar	(not including Loser and Reset button yet) Youtube Terminal Blocks for model railway wiring at Chadwick Model Railway | 85.		Terminal Blocks 8-port 6-sets MILAPEAK $13.89 Terminal Blocks 8-port 6-sets 12-pieces $11.98 Terminal Blocks 10-port 6-sets 12-pieces $10.81 BusBarSeparateSidesAB WayinTop 2 sets $13.99 BusBarSeparateSidesAB $6.99 Terminal Block Jumpers Blue Black Red $9.76 TerminalBlockSpadeConnectorsNumber8 $9.99 Adafruit $1.95 TerminalBlockBlue2 $9.99

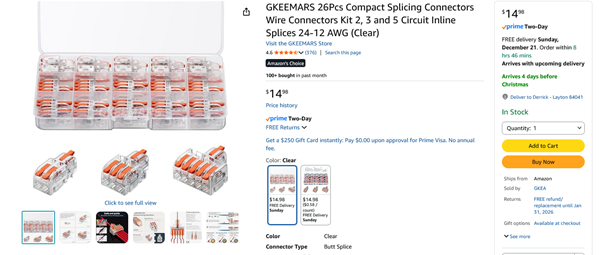

xxx	Assorted box, define for next build.	B0CLNQM1F9	Clear Lever connectors, 26Pcs Compact Splicing Connectors Wire Connectors Kit 2, 3 and 5 Circuit Inline Splices 24-12 AWG		Amazon Kit, clear, multiple sizes $14.98 1 to 5 ports, 14 pieces $14.27 WAGO 10 conductor, 15 pcs $26.95

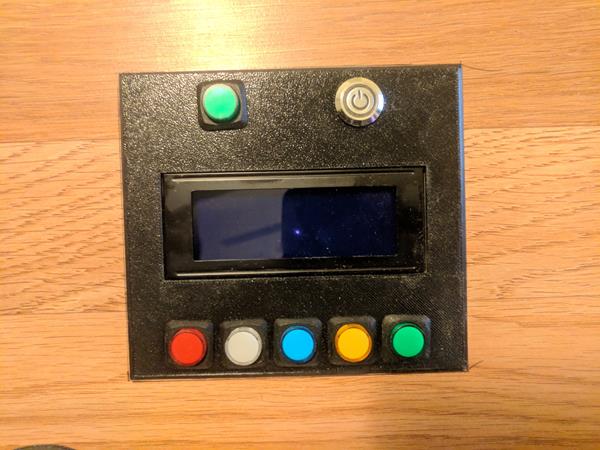

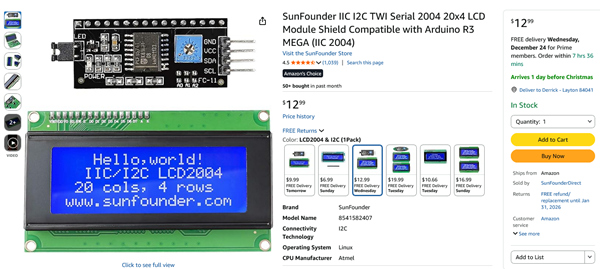

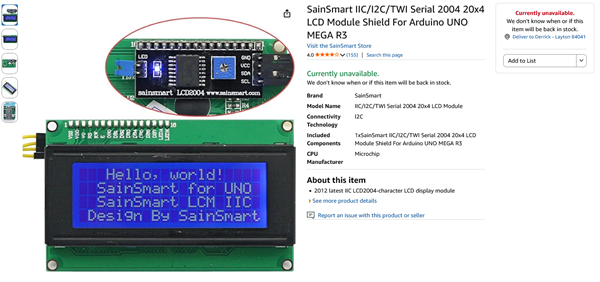

xxx	1	Sunfounder B01GPUMP9C (v2 used SainSmart)	Sundfounder Wiki Specs LCD SainSmart IIC/I2C/TWI Serial 2004 20x4 with shield Maybe upgrade to touch screen or newer, this was from original design. Not smart enough to use touch screens. Youtube: 16x2 LCD with I2C for Arduino | Step-by-Step Guide for Beginners Arduino with LCD Display I2C | Full Tutorial pdf spec, Handson		SunFounder $12.99 Amazon SainSmart, original design (Unavailable) $0.00 Alternate: Amazon diymore $0.00 Amazon WayinTop $9.99

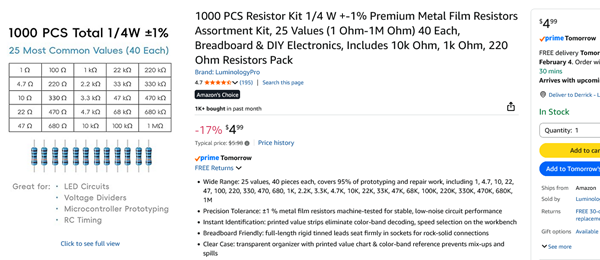

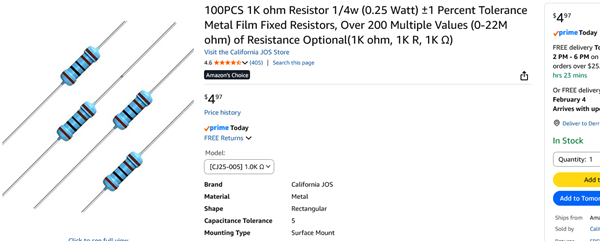

xxx	9 (I think)	1k Resistors	7 for game buttons (check new ones), 2 more for DF Mini player (will not be used w/ new GD3300)		100 pcs $4.97 1,000 pc kit $4.99

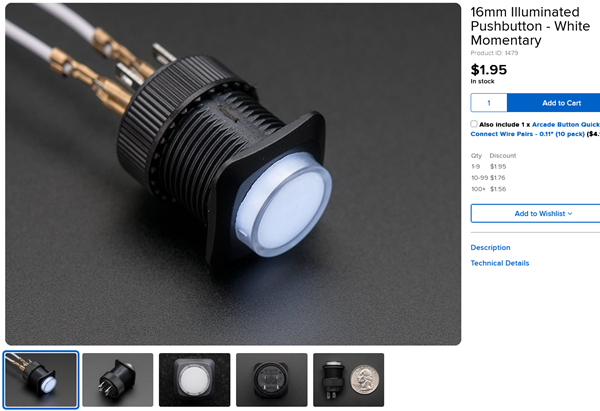

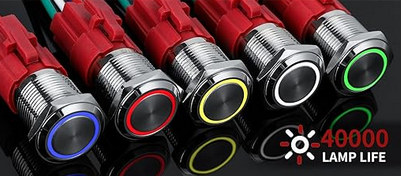

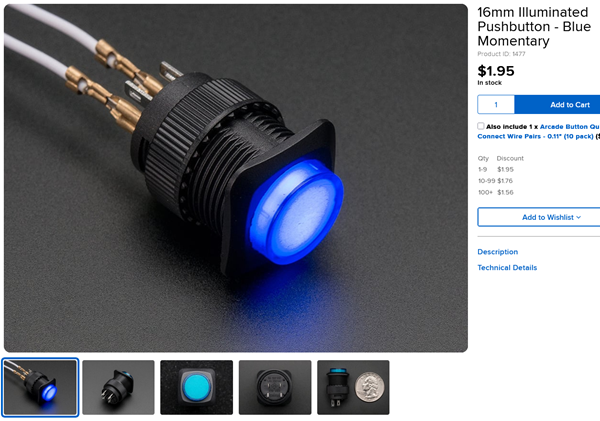

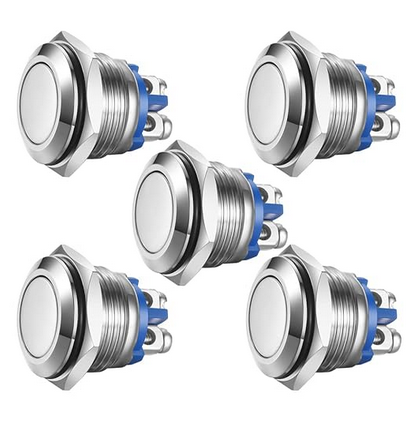

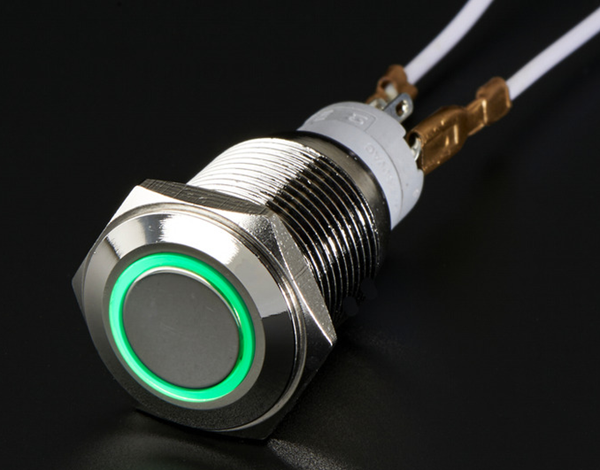

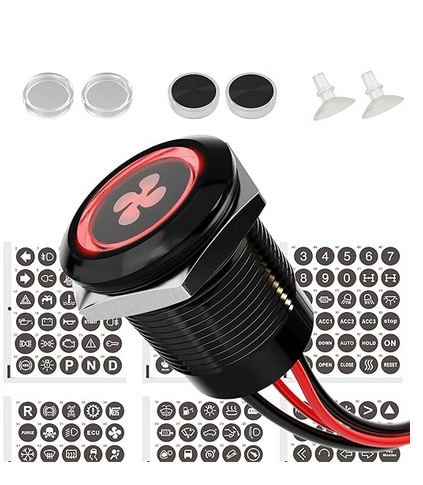

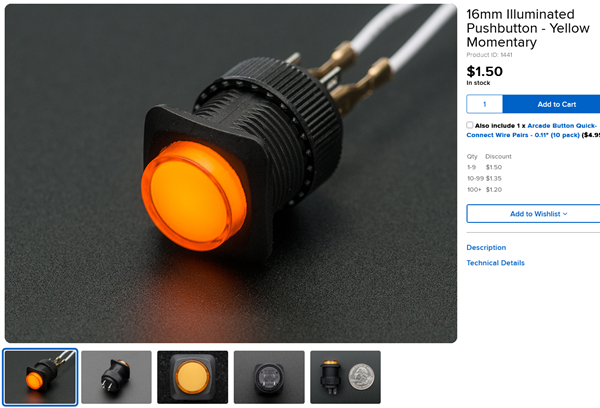

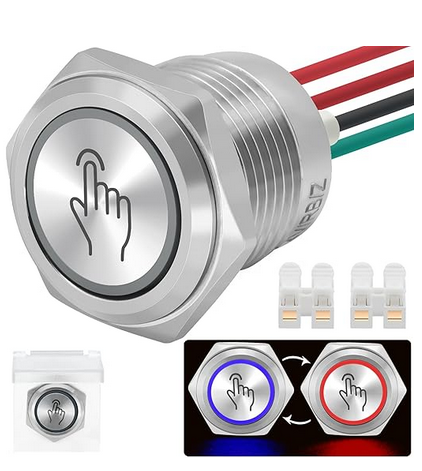

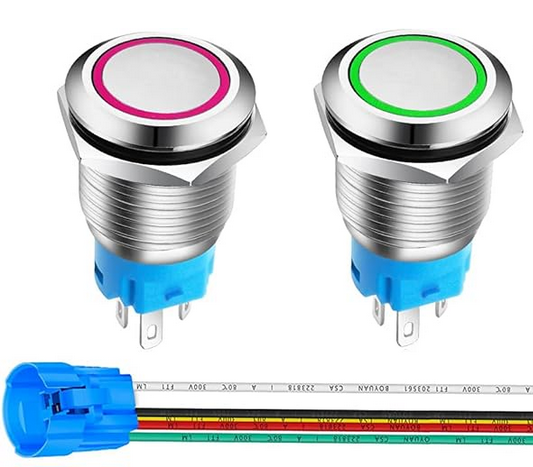

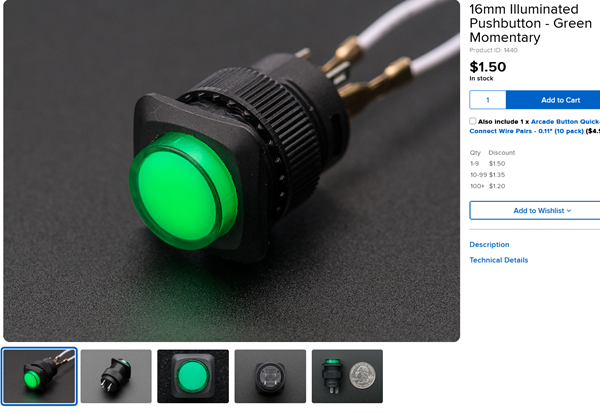

xxx	5	Game select buttons, different colors	I used 16mm Momentary Illuminated Push Buttons. After holding to select game, it will stay lit.		Blue: Adafruit - Blue $1.95 Green: Adafruit - Green $1.50 Red: Adafruit - Red $1.50 Whte: Adafruit - Whte $1.95 Yellow: Adafruit - Yellow $1.50 Alternates (not tested): Amazon 5 pieces $9.45 Amazon 5 pieces $9.99

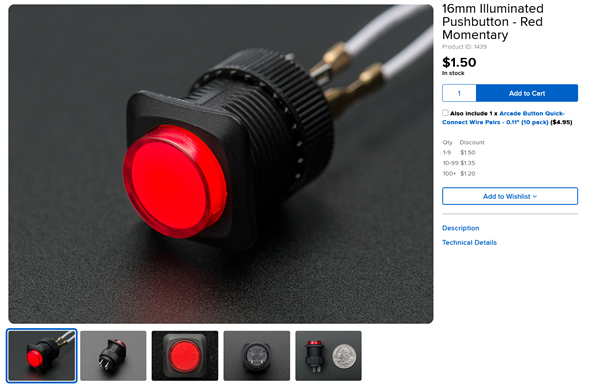

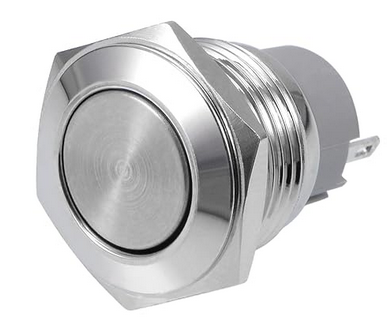

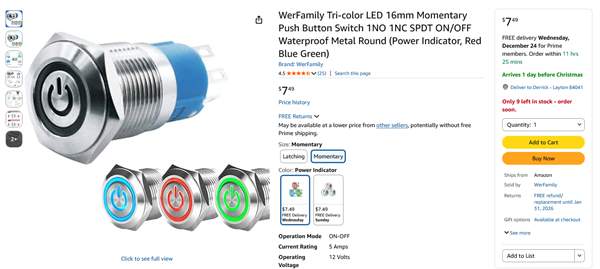

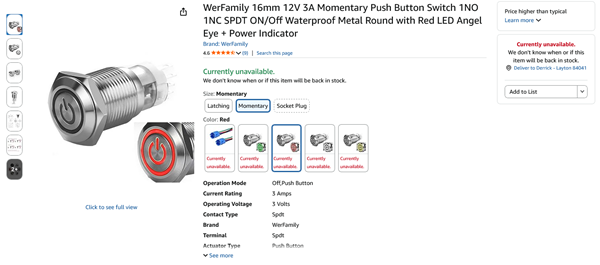

xxx	1	Game Reset Button, power indicator	16mm Illuminated Pushbutton. This connects to the Arduino Reset switch to reboot the device. Can choose Dual or Tri colors. Make sure seller ships to location. How to Wire A 16mm LED Push Button Switch How to Wire an Illuminated Push-Button Switch Youtube: How to wire push button switch with light Wiring a Push Button Switch with LED ring light		WerFamily Tri-color (Red/Green/Blue) $7.49 WerFamily Tri-color WITH Wire Socket Plug(Red/Green/Blue) $8.19 WerFamily Dual-color (Red/Green) $6.79 Originally Bought: Amazon $N/A

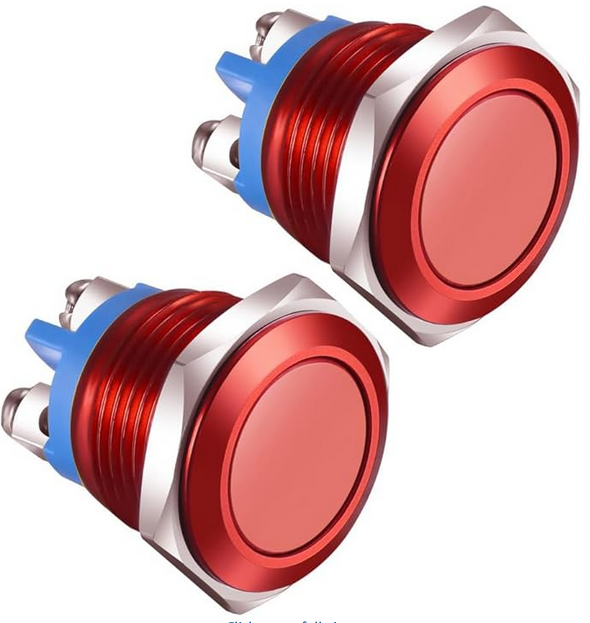

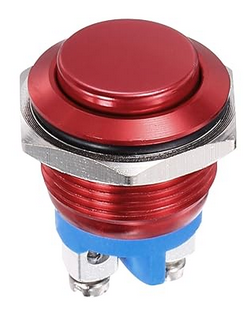

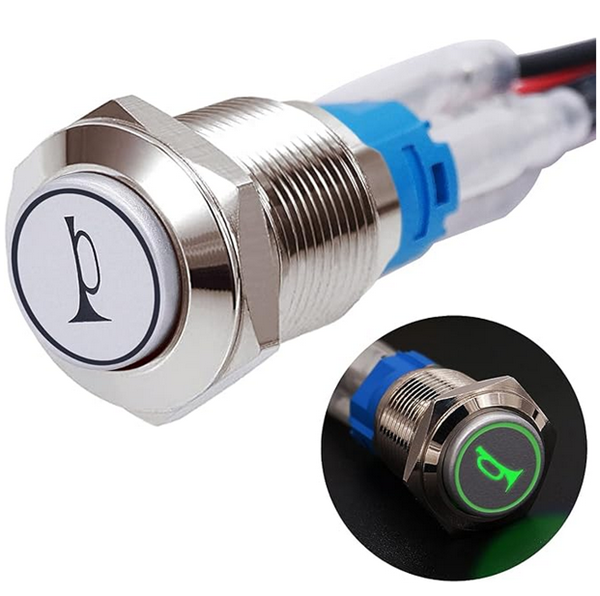

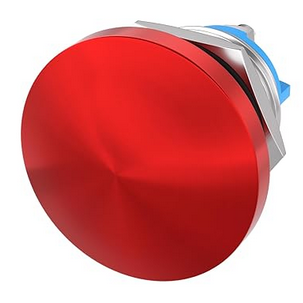

xxx	1	Game over, loser button.	This button will end the current game when another person wins. Was thinking about an angel (illuminated circle) but the light doesn't need to stay on and using Red will make it stand out. Also thought about using a mushroom head but it might accidentally be pushed.		Red Shell 2pcs $7.99 Metal Green Angel Illuminated adafruit (Multiple colors) $4.95 Metal Horn (Multiple colors) $7.99 Metal Finger (Red/Green) $12.99 Metal Angel Red Green w/ connectors $7.99 Metal Angel Mult Colors w/ connectors $6.99 Metal Mushroom Langir $8.99 Metal Mushroom STARELO $6.99 Metal Mushroom ZJWZJH 2pcs $12.88 Red/Black/Blue/Gold/Green Shell DMiotech $6.49 Silver Shell uxcell $5.94 Silver Shell 5pcs $8.99 Multiple Caps $13.99 Multiple Caps 2pcs $18.99

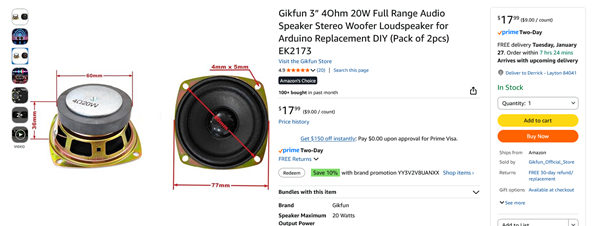

xxx	2	EK1949 (version 2)	Version 3 (PAM8406): Use 2" or 3", 4 ohm, 5 watt speakers. Currently waiting for speakers to test differences. 2" will be more widely available. Gikfun 2" 4Ohm 5W Full Range Audio Speaker Stereo Woofer Loudspeaker for Arduino Replacement (Pack of 2pcs) EK1949 For best results, use 4-ohm, 3W speakers		2" 4Ohm 5W full range: DWEII: Set of (2) 1.5" (40mm) $7.99 Set of (4) 1.5" (40mm) $14.99 Set of (2) 1.5" (40mm) $7.99 ACEIRMC: Round 2" (53mm) 4pcs, 4ohm 5watt $14.99 Square 2" (53mm) 4pcs, 4ohm 5watt $14.99 3" 4Ohm 5W full range: Fosa 3" (77mm) 1pc, 4ohm 5watt $7.59 Fielect 3" (77mm) 1pc, 4ohm 5watt, Blue $9.99 3" (77mm) BUT 20 watts, 2pcs, 4ohm 5watt $17.99 Original Purchase, 2" Amazon Gikfun 2" 4Ohm 5W 1.5" (40mm) $12.99 Alternate: Amazon 2" only 3Watts $11.49

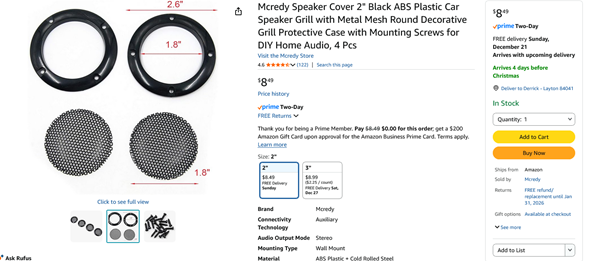

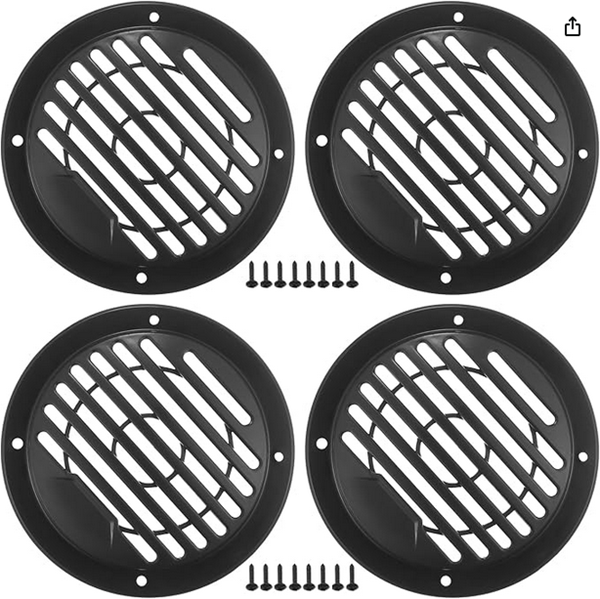

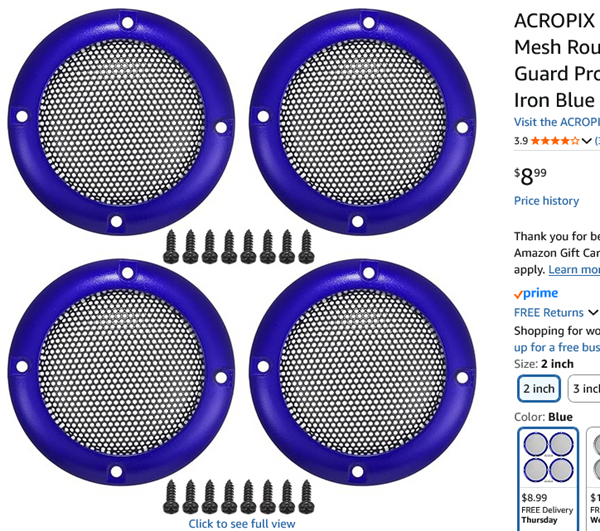

xxx	2	B07XQ8LG7N	Speaker Cover 2" Black ABS Plastic Car Speaker Grill with Metal Mesh Round Decorative Grill Protective Case with Mounting Screws		2" Covers: Mcredy 4pcs, Black $8.49 ACROPIX 4pcs, Blue/Silver/Gold/Red $8.99 Zopsc 2pcs $6.79 Zerone 2pcs $6.73 3" Covers: Mcredy 4pcs, Black $8.99 ACROPIX 4pcs, Blue/Silver/Gold/Red $11.99 DGZZI 2pcs, Gold $9.99 uxcell 2pcs, Silver $9.89 Acropix Lines $8.91 Acropix Silver Lightning $6.79

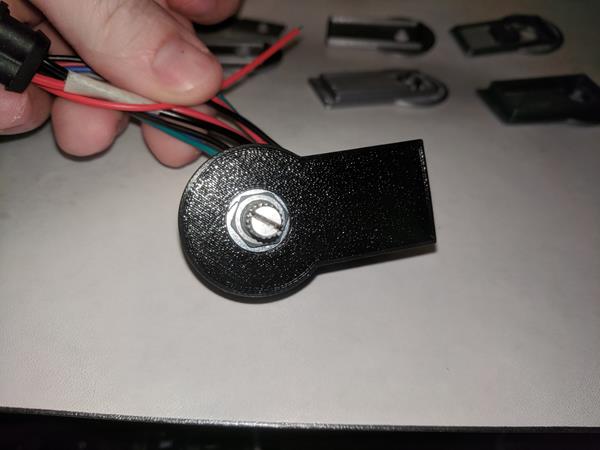

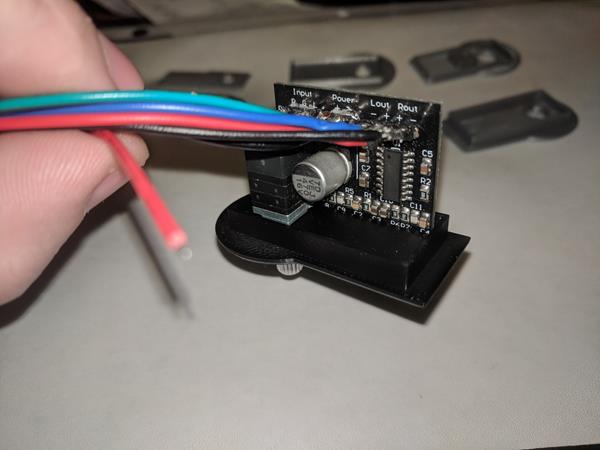

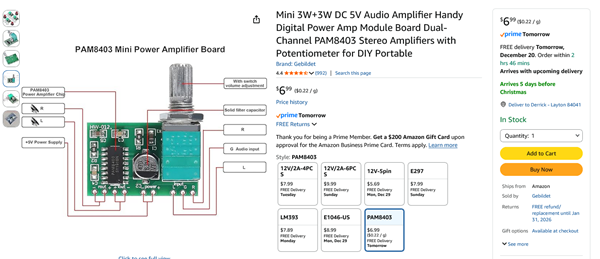

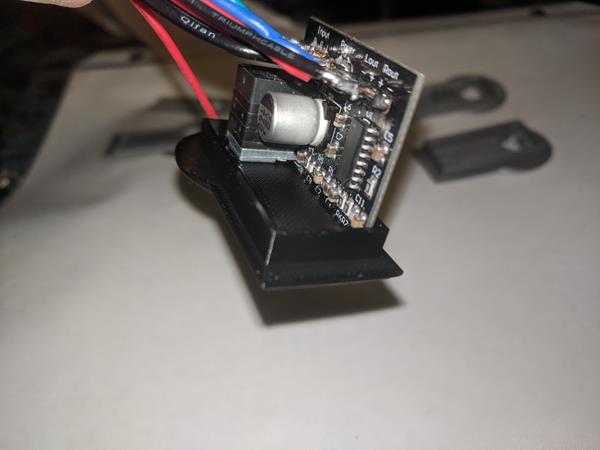

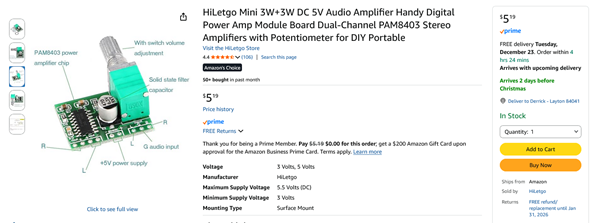

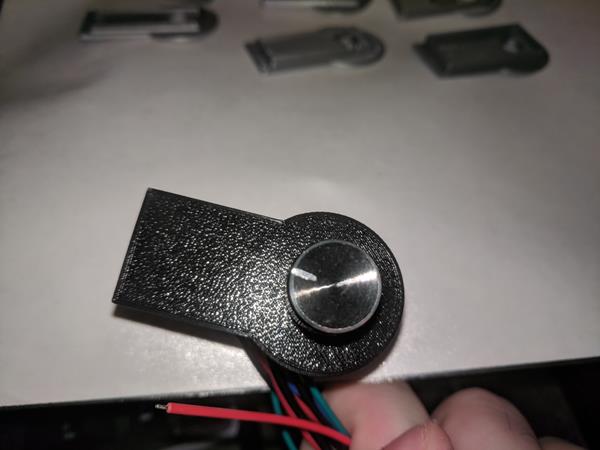

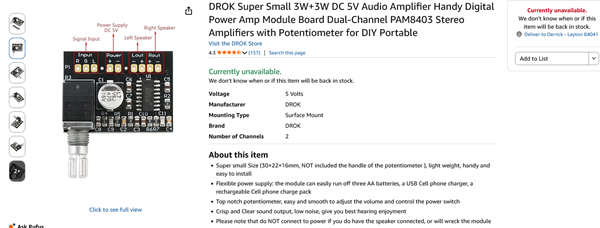

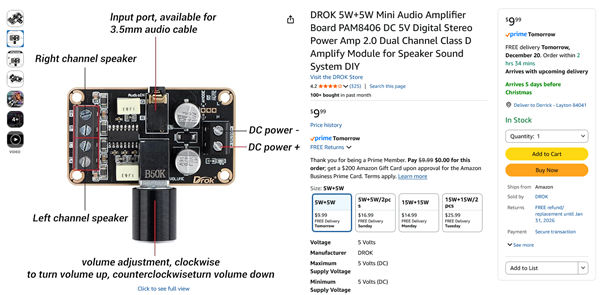

xxx	1	PAM8406 (PAM8403 is OLD version 2)	PAM8406, DROK version, has 3.5mm input jack. Old: DROK PAM8403 Stereo Amplifiers with Potentiometer, 5v. Youtube: DROK PAM8406 5W 5W: Small Board, Big Sound DROK PAM8406: Best Mini 5W Audio Amplifier Board? PAM8406 5V Amplifier Review 3W Vs. 5W		Amazon DROK PM8406 version $9.99 Question how to connect: Drok forum Amazon PAM8403 DROK $0.00 ($0.00) Possible alternatives (unverified): Amazon Gebildet $6.99 Amazon HiLetgo mini version $5.19 Amazon HiLetgo $7.49

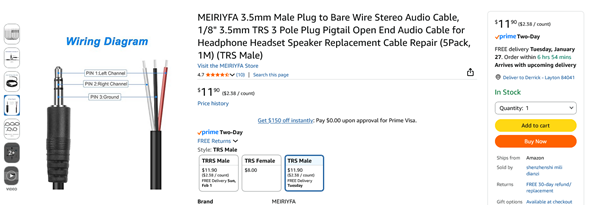

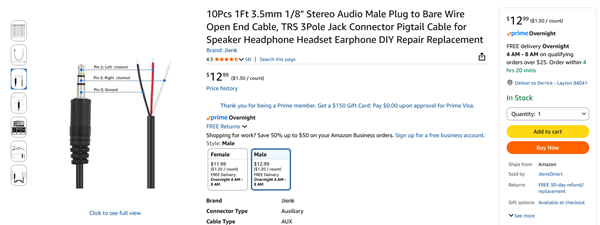

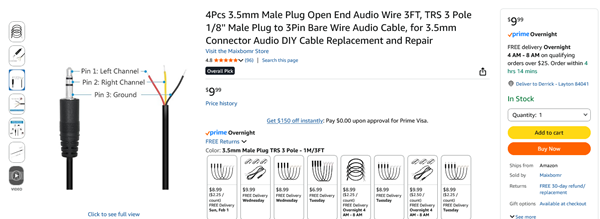

xxx	1	B0BHX662H3 (Amazon Choice)	3.5 Male Plug TRS 3-pole Open End 1/8" Jack for PAM8406 Monaural (audio signal composed of a single channel, designed to be heard as a centered, non-spatialized sound source) NOTE: If using the new GD3300 / YX5300 serial mp3 player, this isn't needed, just a long 3.5 audio jack.		Amazon Choice Maixbomr 4 pcs $9.99 Amazon MEIRIYFA 5 pcs $11.90 Amazon Jienk 10 pcs $12.90

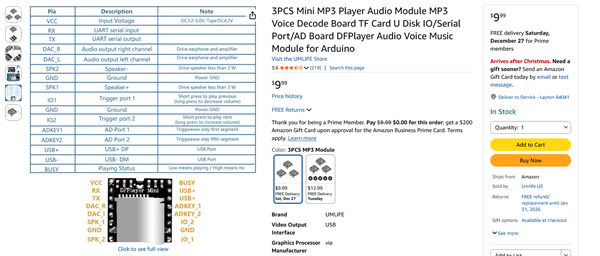

xxx	1	DFPlayer Mini Possibly use GD3300/YX5300 instead.	MP3 player Look into Diode Not 0.7 or 0.8 to drop it to 4.3 volts Add a capacitor? .		Amazon DF Robot (1) $9.90 Amazon UMLIFE (3) $9.99 Amazon UMLIFE (5) $14.99 Old, purchased: Amazon DF Player Mini (2) (out of stock) $0.00 Amazon DF Player Mini (5) (out of stock) $0.00

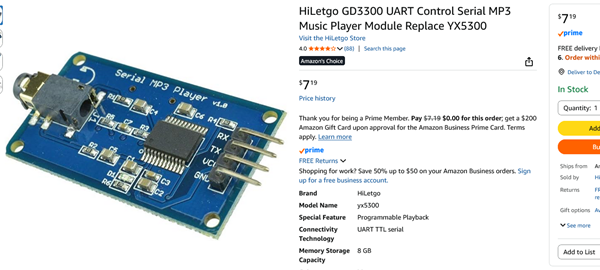

xxx	1	GD3300 (Replace YX5300)	Serial MP3 Player (Use this instead of DF Mini Player) Youtube: Audio modules for electronics project Arduino + Aideepen YX5300 Serial MP3 Music or Sound Player Tutorial (SerialMP3Player Library) Arduino Tutorial #6 - Playing sounds with a Serial MP3 Player and an Arduino Nano Arduino: SerialMP3 Library Proyectil GD3300 Library Github SerialMP3 Github Proyectil		HiLetGo GD3300 $7.19

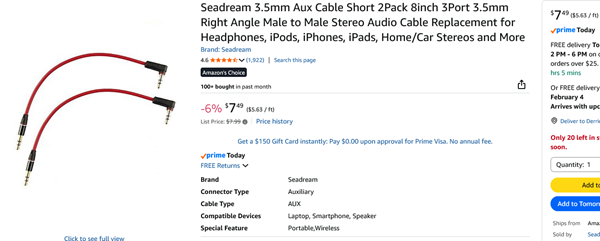

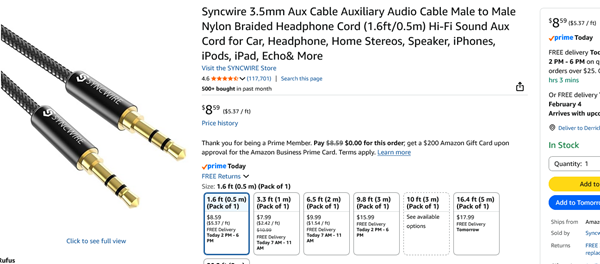

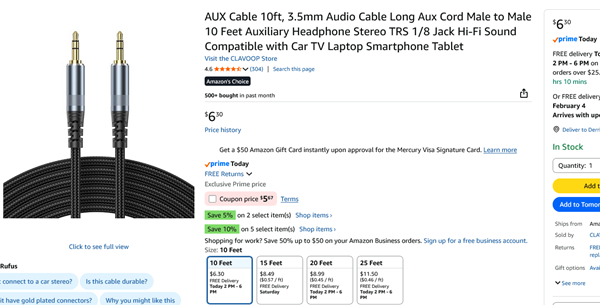

xxx	1	3.5mm audio jack	This will connect the GD300 to the PAM8406 module. Get a long if it will be in the brainbox, shorter for next to it.		10 feet $6.30 10 feet, 2 pack $8.99 1.6 feet, 1 pack $8.59 1.5 feet, 2 pack $4.99 1 feet, 1 pack $5.28 8 inch, 1 pack $7.49

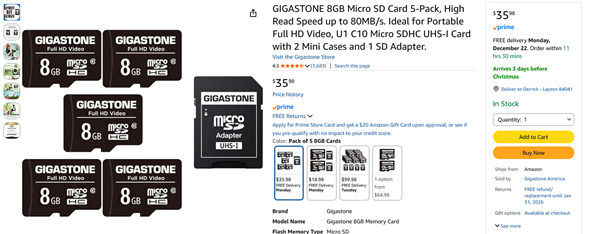

xxx	1	B0876H3YBQ	SD Card, Micro. Limitation is what the MP3 player will support		2 pack, 8gb $7.99 Amazon 8gb 5-pack $35.98 Alternate: Amazon single card, just searched for a cheap one $6.99

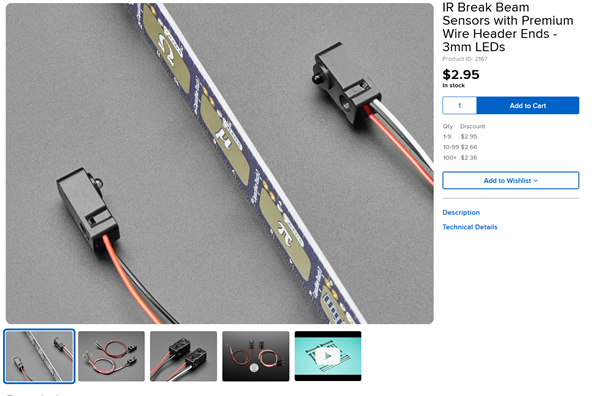

xxx	25	2167	25 IR Break Beam Sensors with Premium Wire Header Ends - 3mm LEDs		Adafruit Breakbeam Sensor $2.66 ($66.50) Digikey Adafruit Breakbeam Sensor $5.95 ($148.75) Rip offs? (UNTESTED): Vasiumic 5 pc $8.46 Elmtap 5 pc $12.19 Alternate Crash Sensors (Version 2): Amazon IR Crash Sensor 10 pcs $9.96

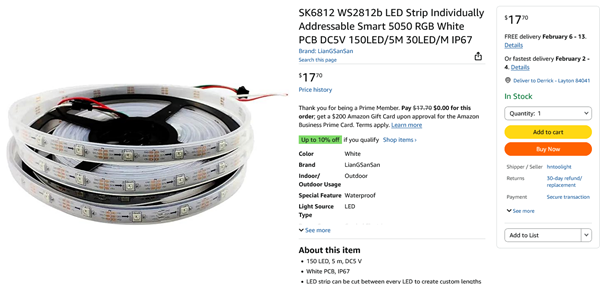

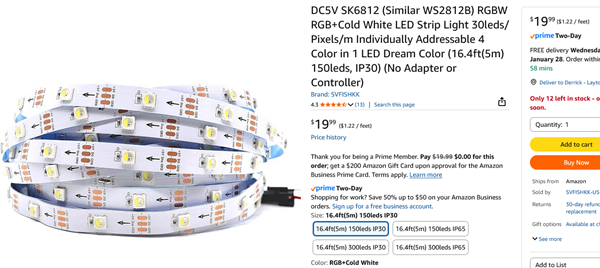

xxx	25	LEDs	The best addressable LEDs for an Arduino Mega are 5V WS2812B LED strips or matrices. They are ideal because they require only one digital pin for data, and the Mega's 256KB flash memory can handle large, complex patterns. SK6812 (RGBW) is a suitable alternative for better white light control and voltage drops. Originally used Adafruit 1460 (WS2812B), has rubber casing. Need to figure out Arduino Code for SK6812 if using.		SK6812 Cold White, 15ft/130 LEDs $19.99 WS2812B, Cover, 15ft 130 LEDs $17.70

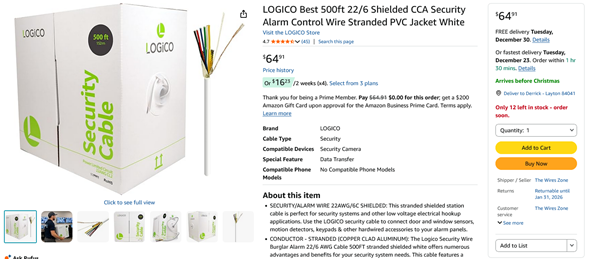

xxx	xxxQuantity	xxxPartNumber	Wire 500ft 22/6 Shielded This is what I used for price/cost any 20/22 wire will work.		Amazon 500ft 22/6, 500ft per wire $64.91 Alternates: Amazon 600ft 22/6, 6 rolls 100ft per role $19.39 Amazon 50FT 22 Gauge Wire 5 Conductor, 22AWG Electrical Wire, 22/5 $28.99

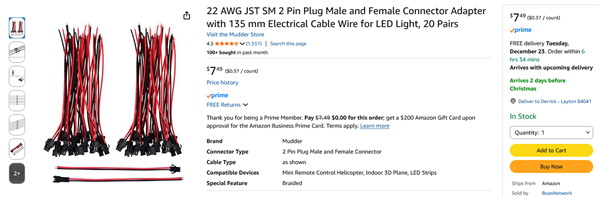

xxx	xxxQuantity	xxxPartNumber	2 wire connector for speakers (look at design and pics)		Amazon 22awg 2-wire JST $7.49 Alternate: Amazon 22awg 2-wire JST also $7.99 Amazon 22awg 2-pin - says silicone 6.99 Amazon 20awg $9.99

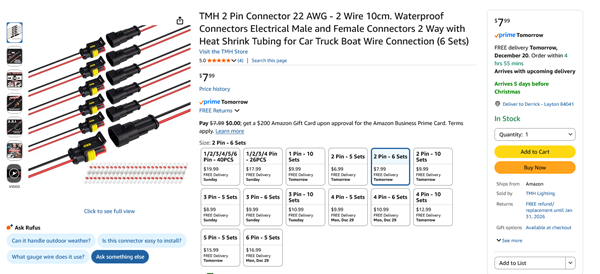

xxx	xxxQuantity	B0FNJSGLNH	2 wire connector for AMP wall connector? (look at design and pics)		Amazon 2pin waterproof 22awg $0.00 ($0.00) Alternate: xxx $0.00

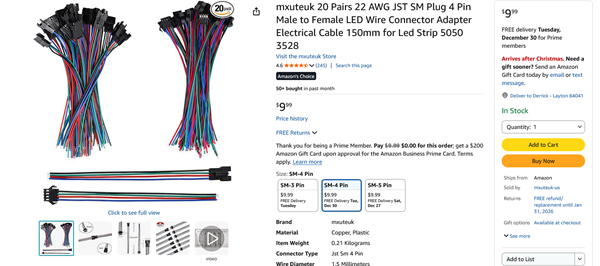

xxx	8? 7 buttons, 1 lcd	xxxPartNumber	4-wire 20 Pairs 22 AWG JST SM Plug Connector 4 wire connector for buttons LCD Connector? (look at design and pics)		Amazon 4 pin 22 awg jst $9.99 Alternate: Amazon 4 pin 22 awg jst $9.01

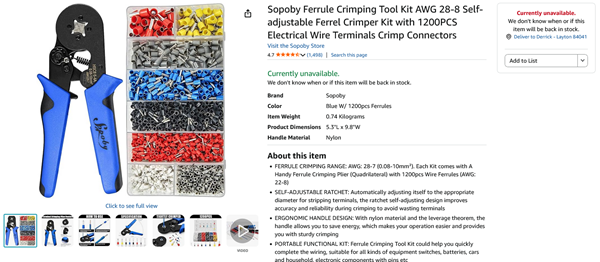

xxx	1	xxxPartNumber	Ferrule Crimping Tool Kit AWG 28-8 Self-adjustable Ferrel Crimper Kit		New: Amazon kit $22.98 Orginial: Amazon Set $0.00
xxx	1	TOWOT 63-37	Solder, 1.0mm, 63-37 High Purity Lead, Rosin Core, Content 1.8% Solder flux (1.0mm, 100g)		Amazon TOWOT Solder Wire 1.0mm $9.99

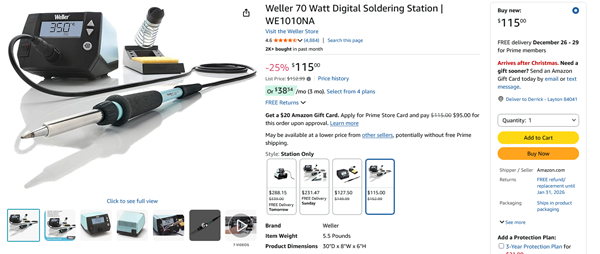

xxx	1	WE1010NA	Soldering Station Weller 70 Watt Digital WE1010NA (not specifically required)		Amazon Soldering Station $115.00

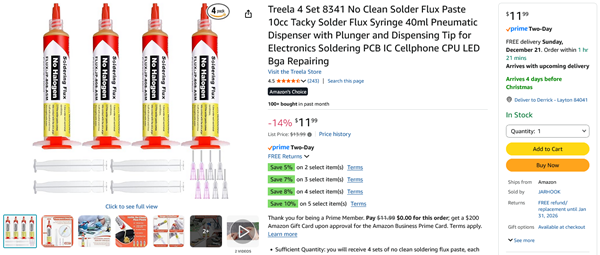

xxx	1	8341	Flux Paste Treela 4 Set 8341 No Clean Solder Syringe 40ml Pneumatic Dispenser with Plunger and Dispensing Tip		Amazon Flux Paste $11.99

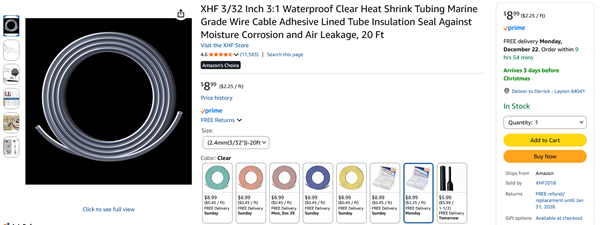

xxx	1	B09X5MCJMG	XHF 3/32 Inch 3:1 Waterproof Clear Heat Shrink Tubing Marine Grade Other Sizes Available, 3/32 good for 1 wire.		Amazon Clear Heat Shrink Tubing $8.99

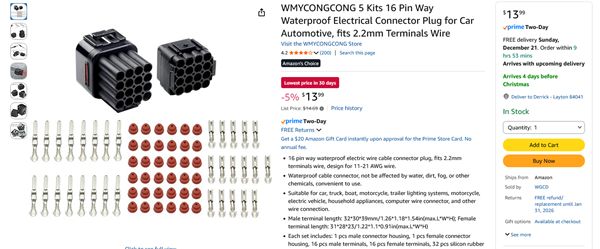

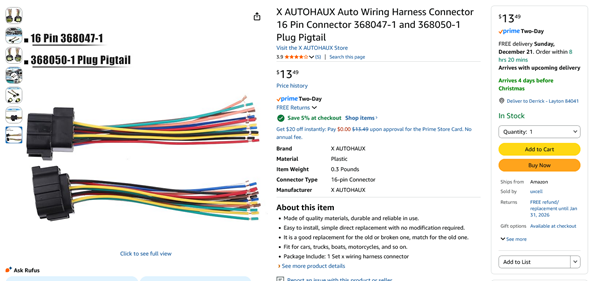

xxx	4	Various	16 pin connectors Using different ones will be easier to connect		Amazon Harness $7.99 Amazon Harness $7.99 Amazon Harness $13.49 Alternate Build yourself: Amazon DIY kit $13.99

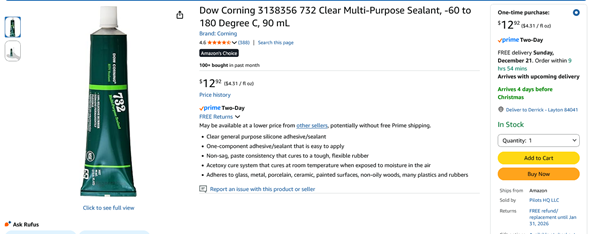

xxx	1	B0CLNQM1F9	Optional: Dow Corning 3138356 732 Clear Multi-Purpose Sealant, -60 to 180 Degree C This can be used on connectors w/out heat shrink tubing.		Amazon $12.92
